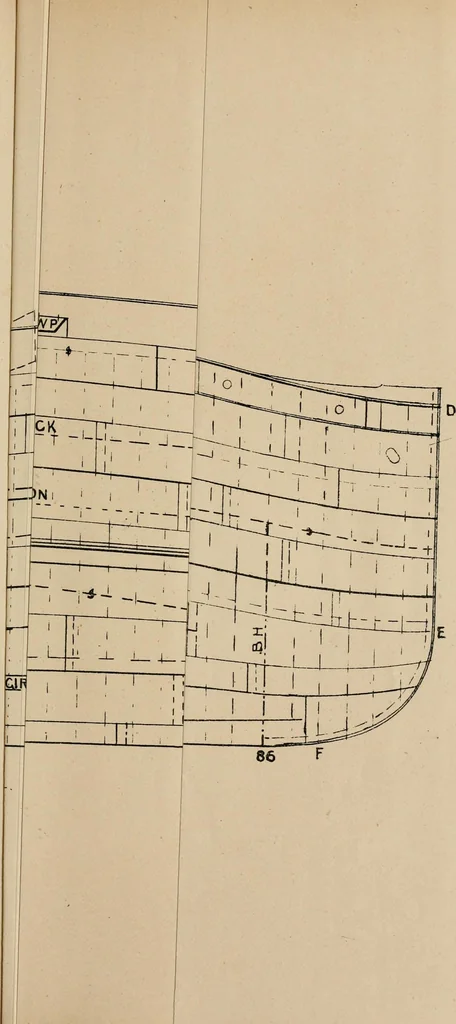

f each plate, the size and spacing ofthe riveting, the width of the butt straps or laps, and the seam edgelaps, and at least the half and three-quarters length amidships, andthe change of the frames or deadflat. It will be evident that this isnot a correct expansion of the shell plating ; and is,… … FIG. 42. SHELL EXPANSION PLAN MP = MOORINC PIPEVVP = WASH PORTC = CANCWAYC D = COALINC
