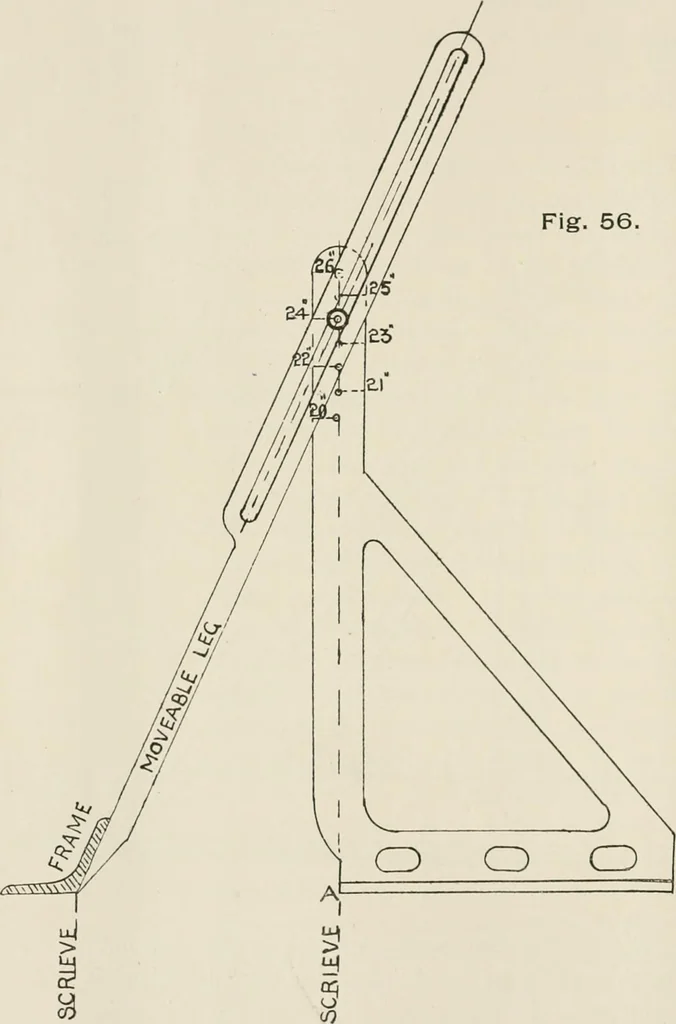

tostand square, off to the bar, with the point A on the next scrieve.Then the front edge of the movable leg, with its point at the heel ofthe frame, should touch for the full depth of the flange if the bevel iscorrect. All frames are tested in this way before erection. 64 NAVAL AKCHITECTUEE. Handy… … SECTION
