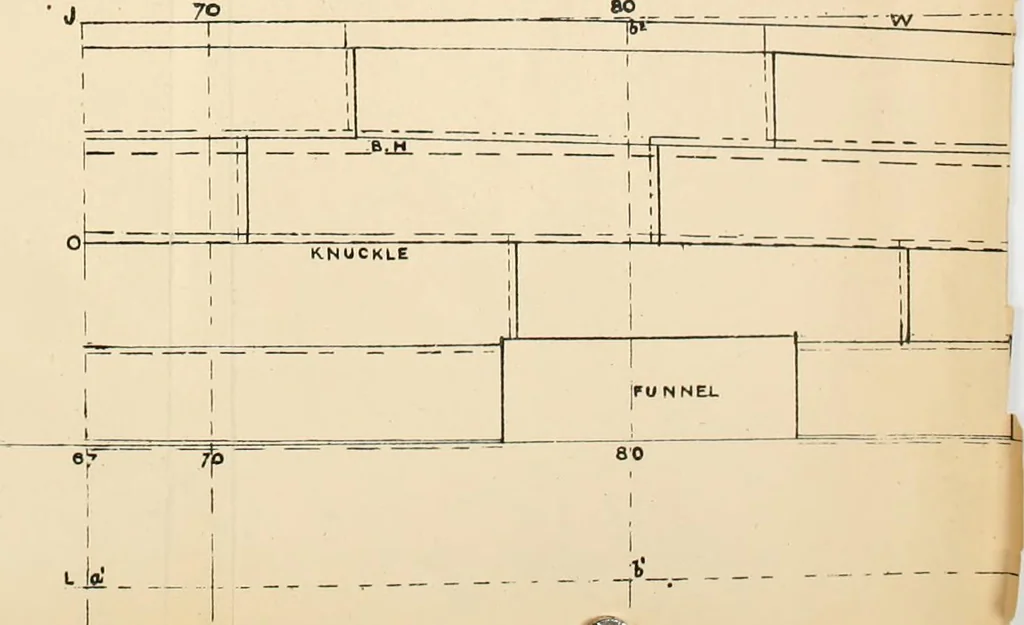

SO I N N El … ARMOUR. 115 sufficiently high to get machinery comfortably into position. Levelthis point U out into each Body until it cuts the produced side lineA T, and reduce the knuckle T by a small curve, or radius. Place inthe Sheer Fig. 111 the deck at the centre U, which is generally main-tained for the…
