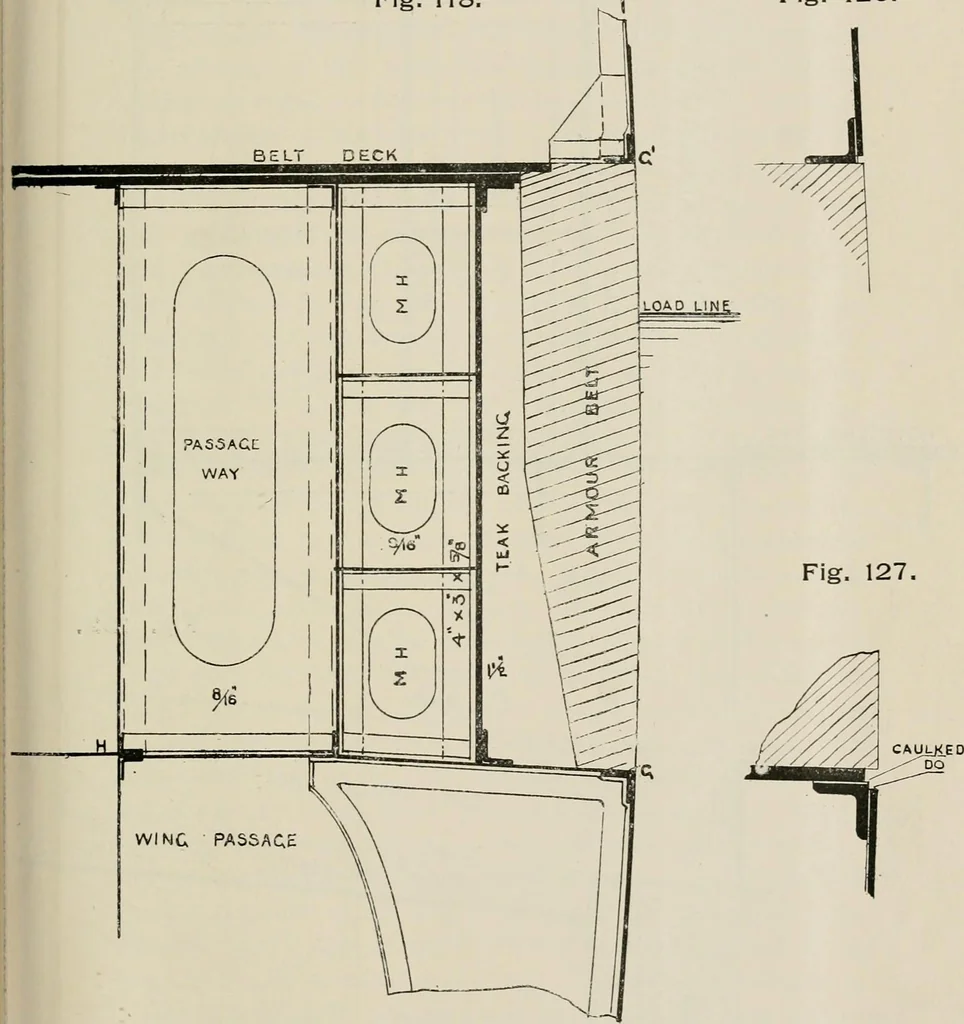

eof any plate may be got by tracing it, and then laying the tracingflat. Order the plate in the usual way described on page 50. Beams Supporting the Protective Deck.—When this deckhas much curve fore and aft, the beam flange is bevelled to suit. ARMOUR. 119 The bevels are lifted in the same manner… … armour belt relative to the load-line is marked on the midship section,as shown in the enlarged sketch in Fig. 118, and also on the Bodysections, Fig. 119. The armour will project out beyond the moulded Fig. 120. FORE AND AFT SECTIONAL ELEVATION OF END ARMOUR. LIQHT DECK BELT DECK
