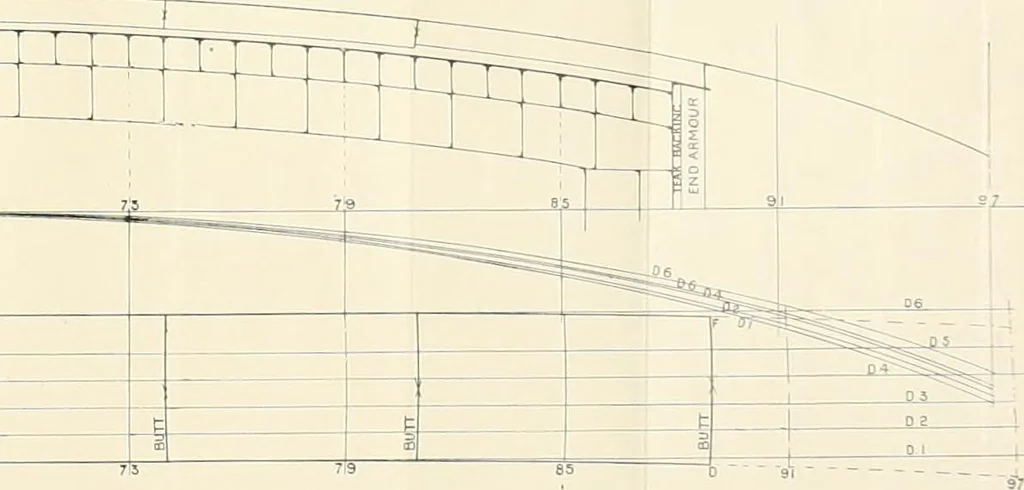

1 I hi i Fig. 125.EXPANSION OF ARMOUR … ARMOUR. 123 bulkhead with large brackets. The butts and edges of the armourare not caulked. The finish of the lower edge is shown by the Fig.127, and of the top by Fig-. 126. The Fig. 120 is a fore and aft sectional elevation through the endarmour, and Fig. 121 a cross section at 30 frame, showing…
