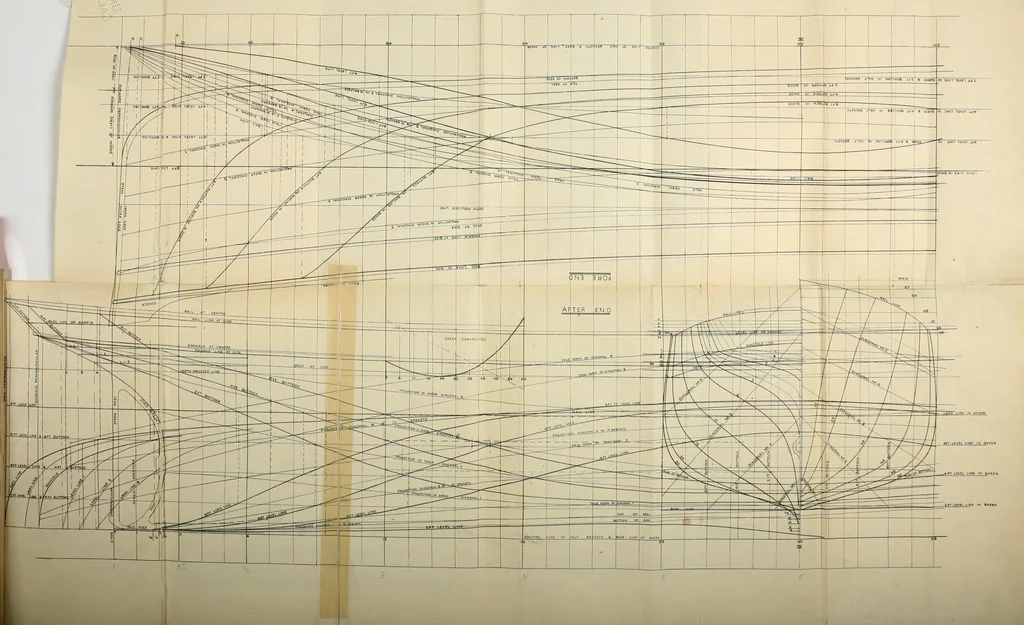

Profileexplained on page 9. This diagonal should be so placed in theBody that it takes the transom, or an additional diagonal used doingso. Square down into the Half Breadth its termination on theinside of the posts. Lift from the Body, on the run of the line, thedistances from the centre to the… … LAYING-OFF THE SHEER DRAUGHT. Figs, i and 3, drawn in on this principle. You may now lift halfordinates on the greatest beam water line and place them in the HalfBreadth and fair the line up and correct ; doing the same withalternate water lines. When these lines agree in fairness with theBody…
