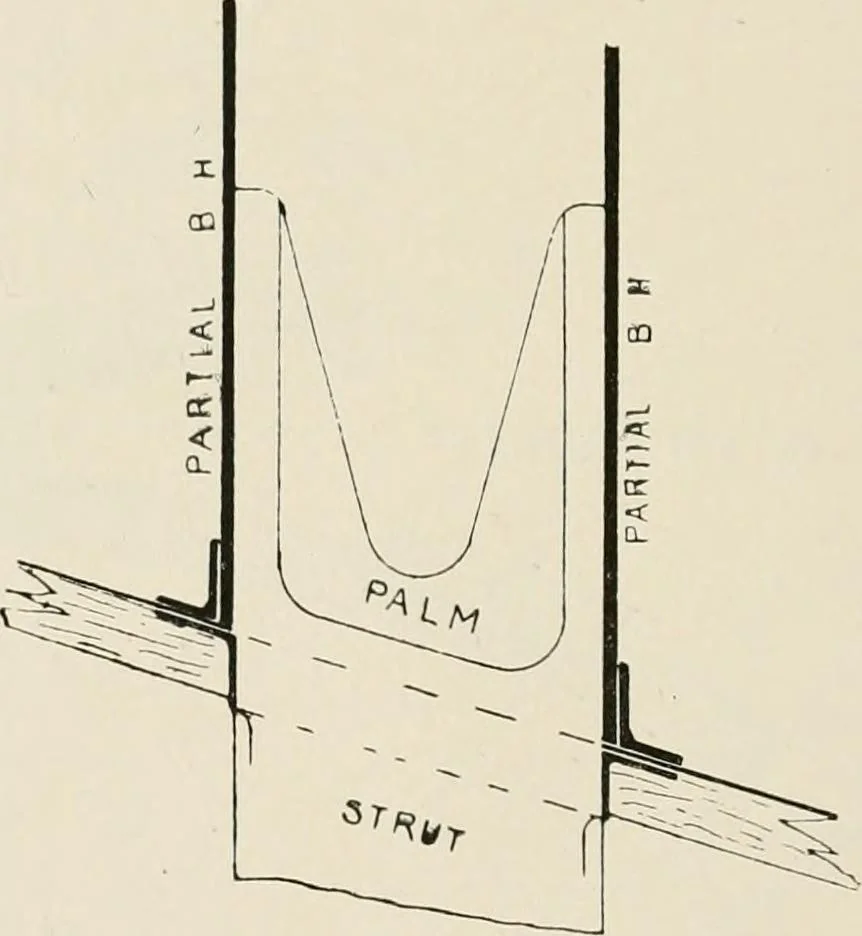

ig. 162 it will be noted that avertical centre plank is worked up the stern plate from the stuffingbox projection to the top to receive the plank ends. Shaft Brackets or Struts Aft.—Occasionally these are madein one piece, but a more general practice seems to be to fit them, asshown by Fig. 164,… … partial bulkheads. They may, where found necessary, be fitted witha double palm as in Fig. 165. A watertight collar, in two pieces, isworked on the shell plating round the struts ; the flange being madesufficiently deep to take the wood sheathing as shown. To make the patterns for casting, the…
