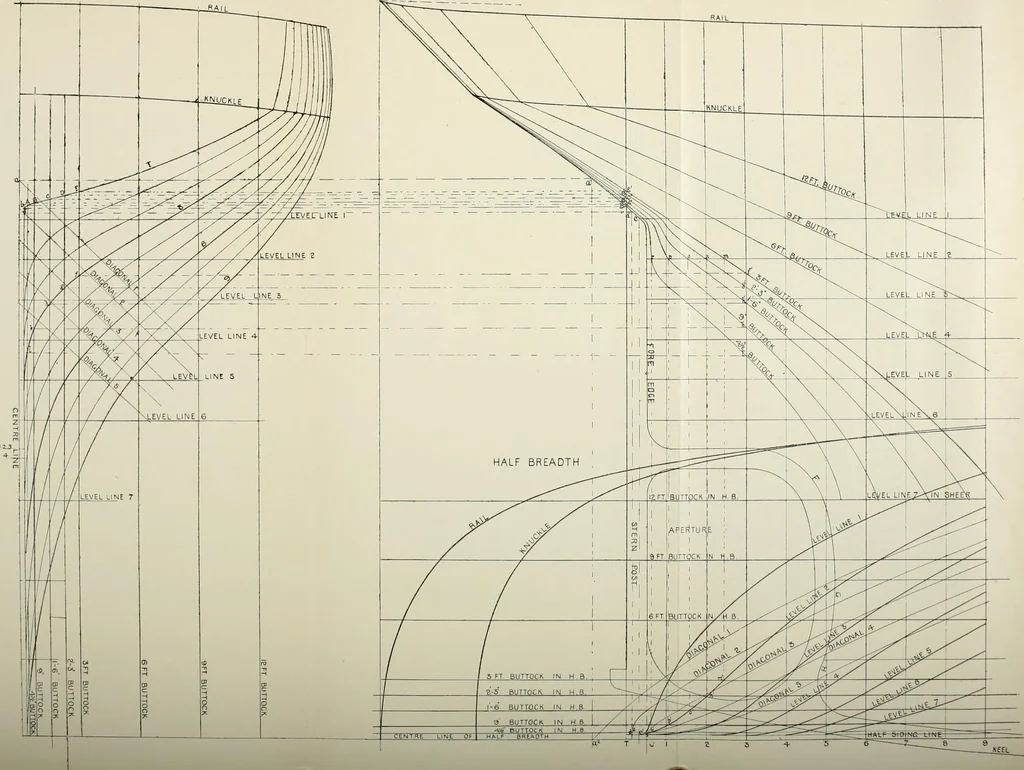

BODY Fig. 11. SHEER … LAYING-OFF THE SHEER DRAUGHT. 17 the half-siding of the post S L. (See enlarged diagram.) Produce A tocut L, and extend the line indefinitely. With a small radius of 2 to4 inches, equal P L, describe circle L m n from P to cut L. Thenthe line S L R is joined with a fair curve to e1, c\ d1, b2,/1,…
