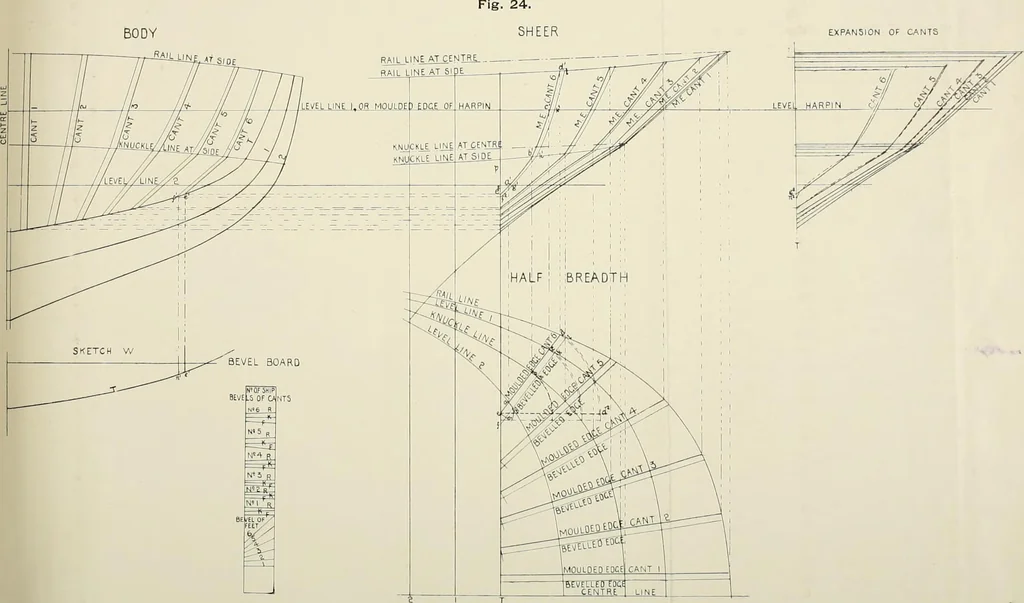

BODY EXPAN5ION OF CANTS … CANT FRAMES. 33 be expanded in their true form. Place level lines through the projectedpoints &1 and d1 on the knuckle and rail. Then lay a batten on themoulded edge of No. 6 cant, and lift the distances a, i, c, and d, frome, and set them out in the Sheer, from the transom, on their…
