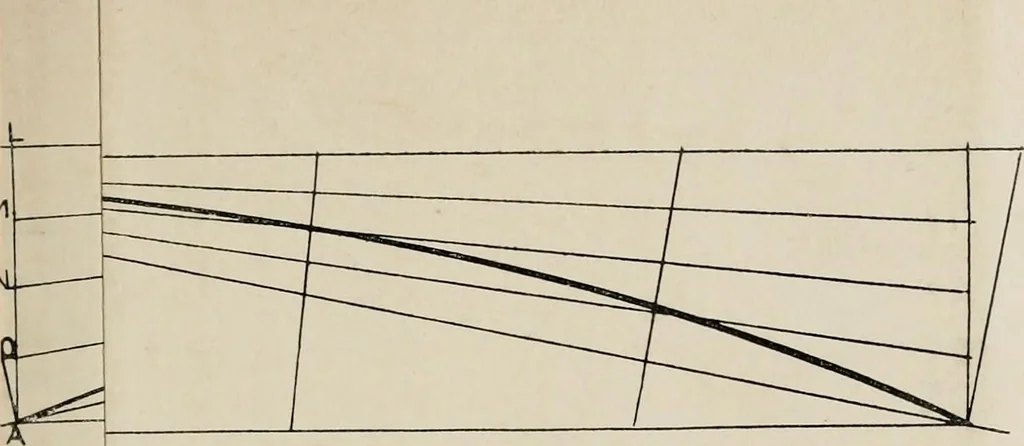

fthe centre line and you will secure curve for the entire beam. Second Method.—In Fig-. 26, let AB equal the length of thebeam and C the centre line. Erect C D perpendicular to A B andequal to twice the camber. Join D to A and B. From D on D Bset off equal distances, say, one foot apart. Do the…
