Naval architecture: a manual on laying-off iron, steel, and composite vessels (1898)
Watson, Thomas Henry · London; New York: Longmans, Green and co., [etc.] · leaf 91

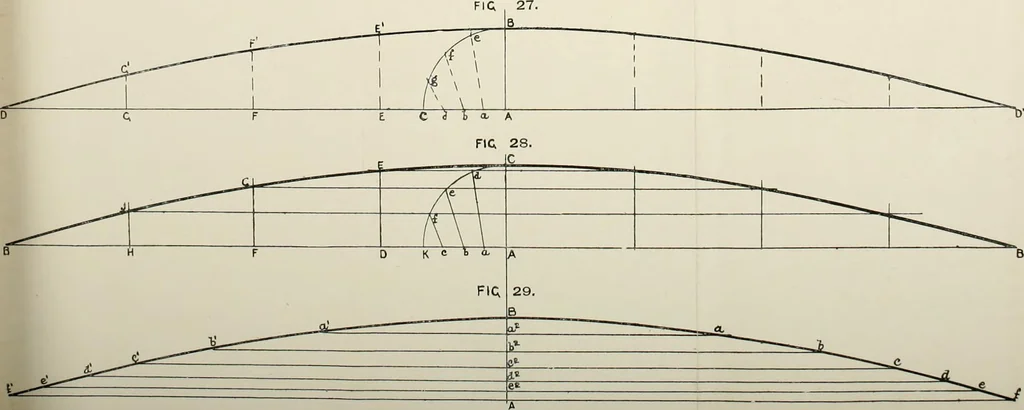

CAMBER FORM.FIQ 25. … DECKS. 35 Third Method.—In Fig. 27, draw AB perpendicular to A Dfrom A. Describe from A a quadrant of a circle with A C equal tothe midship camber. Divide A C into, say, four equal parts by thepoints a, b, d, and the arc B C into the same number of equal partsby e, f, //, and join a to r, b to/,…
Naval architecture -- Handbooks, manuals, etc · Naval architecture · Ships, Iron and steel
