The naval constructor: a vade mecum of ship design for students, naval architects, shipbuilders and owners, marine superintendents, engineers and draughtsmen (1904)
Simpson, George, 1865- · New York, D. Van Nostrand company ; London, K. Paul, Trench, Trübner & co., ltd. · leaf 342

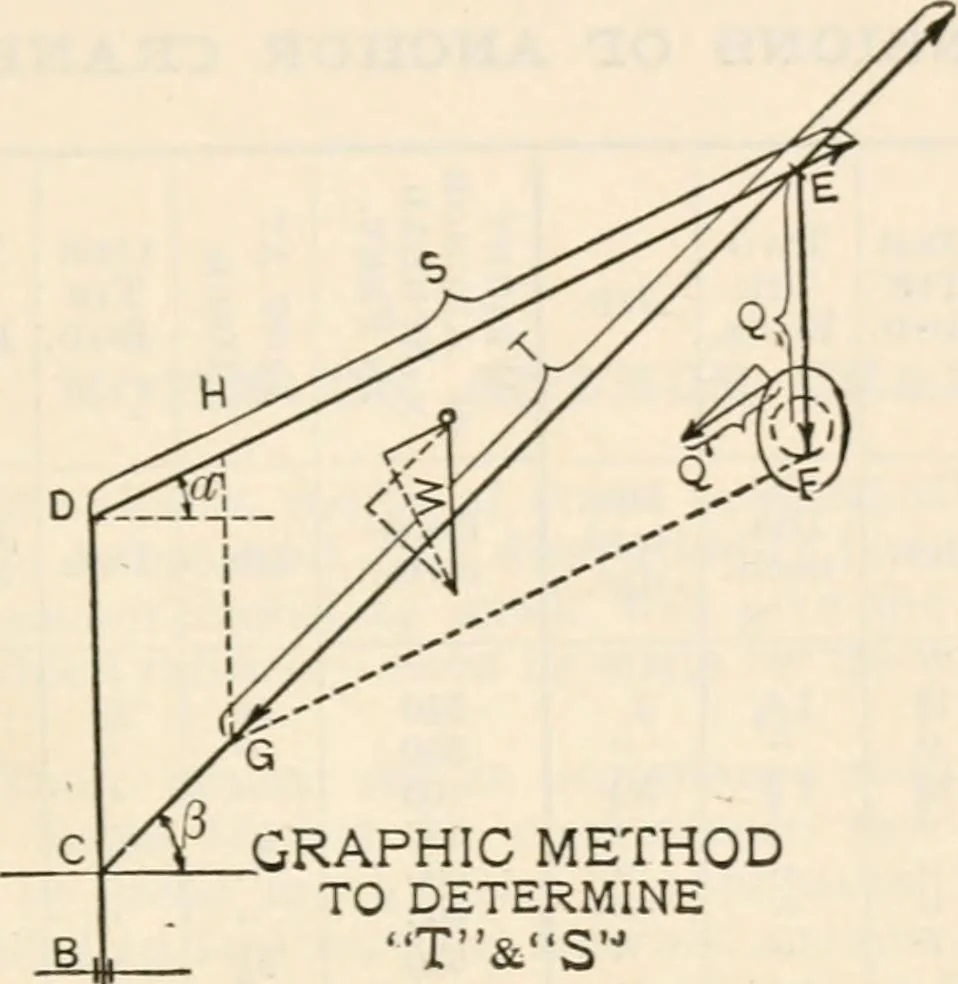

C B x DIAGRAM OF BENDING MOMENTS Fig. 217. Bending Moment on Crane Post. At B, MB — Pi x c Foot-tons. At A% Mx — 0. At C, ifc= Pi x (6 +c)-P2x&. At 7), MD = 0. Diagram of Bending Moments. Draw vertical lines at B and C representing the momentsMB and Mc, and complete the figure as shown on… … GRAPHIC METHODTO DETERMINE T&.S,J Fig. 218. Graphic Method of Determining T and S. Q = load in tons. W = weight of jib and tie rods in tons. Draw at the point E a vertical line EF — Q. From F draw FG parallel to ED, then EG, increased with theprojection of W and Q, in the direction of the jib…
Shipbuilding · Marine engineering
