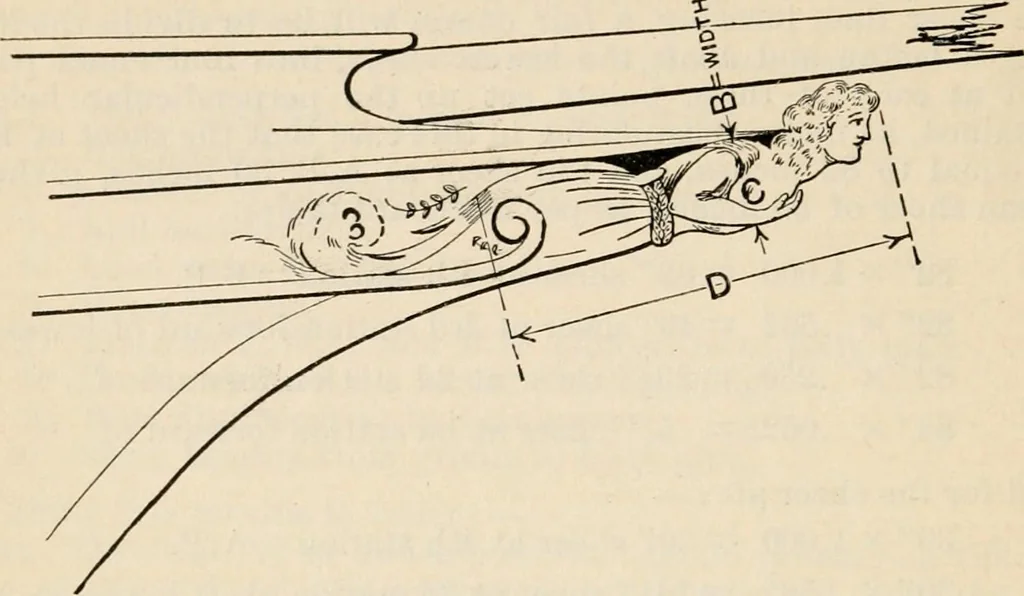

ern and counter the sameremarks as to taste apply, care being taken that the counter linewhere it meets the rudder post is carried by an imaginary curveto harmoniously meet the arch of body post. The counter line,from knuckle moulding to stern post, should be perfectly straight— not hollow. A… … Fig. 12. ALength of B Size CDepth of D Length of Figure Outside of Stem. Vessel,B.S. of LacingPiece. Figure-head. Feet. Inches. Inches. Feet. Inches. 450 12f 30i 9 6 400 12 28i 9 0 350 Hi 26| 8 0 300 101 25 8 0 250 9| 23£ 7 G 200 9 211 7 0 150 H 19| 6 6 100 n 18 6 0 N< )TE. — Angle o f lacing…
