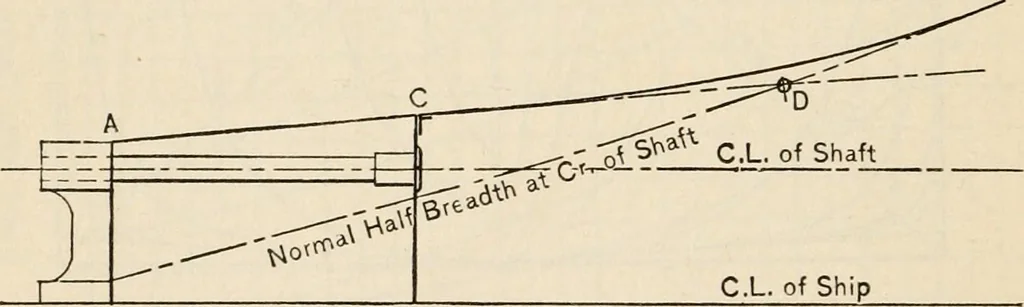

he outside diameter of the boss of spectacle frame,lay off the distance to outer edge of boss barrel at forward end ofsame on the half-breadth plan, as at A. Then take another spotat the fore end of the stern tube equal to the siding of the vesselsbulkhead frame plus one inch clear of the stuffing… … Bhc! Fig. 16. the water plane mentioned and the projected line should then becarefully faired into the eye with a spline, when the resulting linewill give you half-breadths at the shaft center height. These half-breadths being transferred to the body plan, radii should be struckthrough them giving…
