Notes and examples in mechanics; with an appendix on the graphical statics of mechanism; (1897)
Church, Irving P. (Irving Porter), 1851-1931 · New York, J. Wiley & Sons · leaf 138

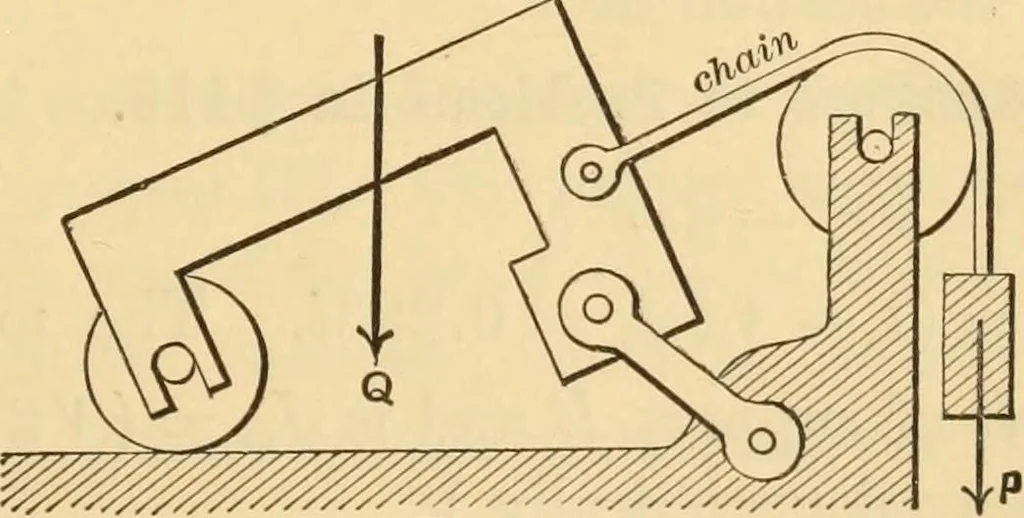

lastic curve ? Also, after a is found, find the maximum shear. (5 and hare given, and also w\ elastic limit supposed not passed.) ■ 3. Fig. 151. By the principles of the graphical statics ofmechanisviy having the resisting force Q given inamount and position, given also all friction angles… … FiG. 151.
