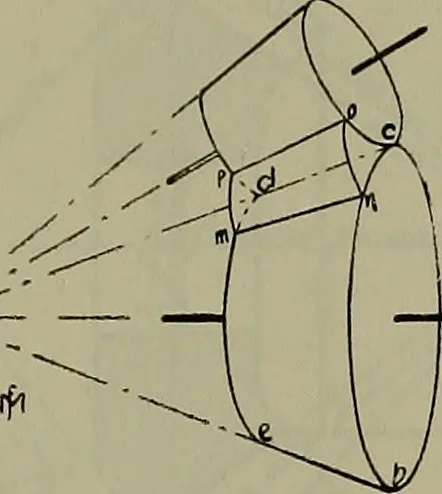

in a spherical surface every faces being represented hy A B C and C U E in thepoint is equally distant from a point within called the figure. ihe length of the arc // i? C is equal to thecenter. It therefore follows that n—o must lie upon a circumference of the pitch circle A C, and the… … 0^ To be theoretically exact, the tooth curves should betraced upon the surface of a sphere, as shown in Fis^-.II. This method is not practical, however, and hasno advantage over what is known as Tredgolds ap-proximation, which is much simpler and is universallvused. By this method the tooth curves…
