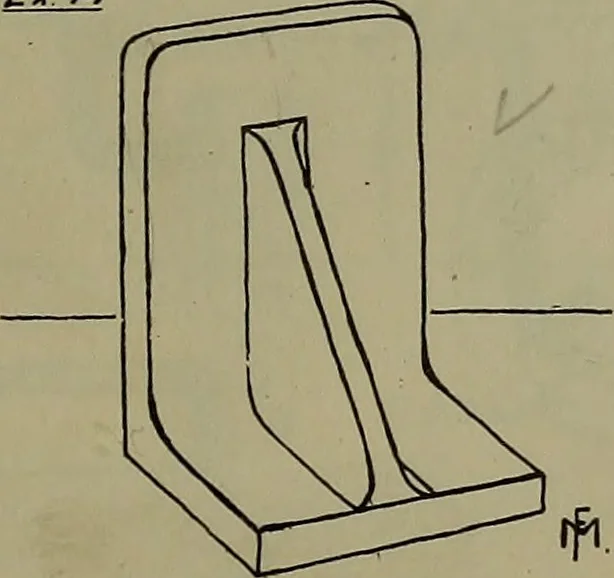

-FrU— … 13. Bronze Bush for BearingsMake three views, with dimensions, of a bush5 long, 2^ high, 3^ wide; groove, 2 X iVdia. of bearing, 2^. 14. Angh Iron. Make working drawing ( front and side views)of angle iron with base 4\ X 4\ X ¥> ^upright 4j X 6^ X ¥■ Brace is ^ thick,extends from top edge of…
