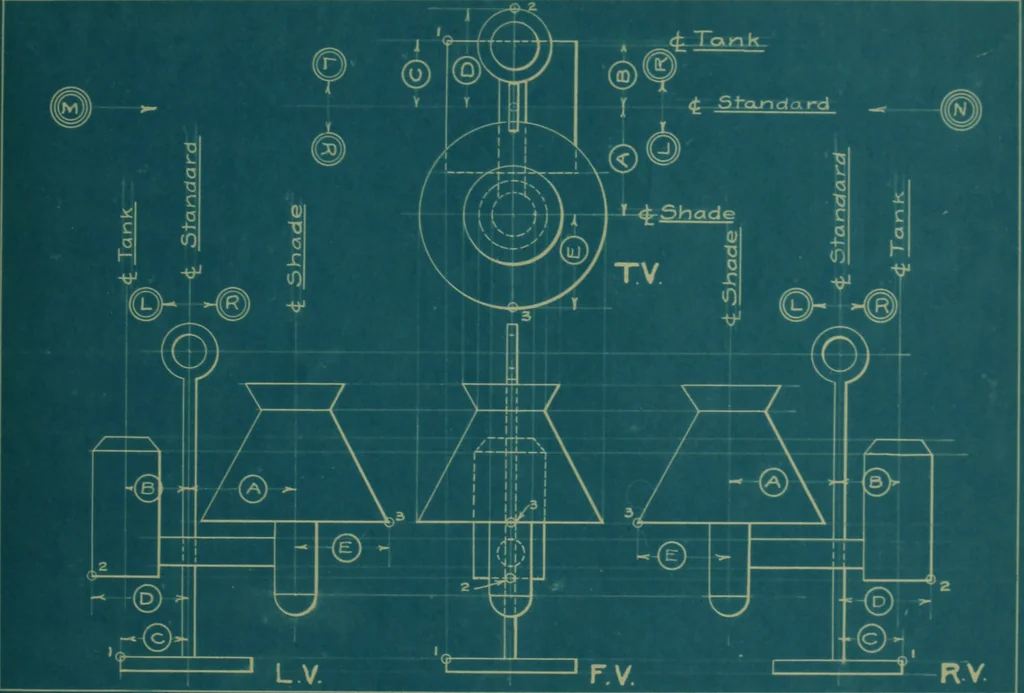

wouldthen be placed below the F.V. V. (a) Any xiew of an object may be taken as a F. V., buthaving selected and located this, the other Views mustbe grouped about it in accordance with the aboveprinciples (T.V. always at Top —R.V. always atRight, etc.). (&) In general, three Views are enough to… … Note: The symbol 4 -standa for CENTRE LINE^ Sheet C 2i) SHBET 8 OrthLOgraphiic Projections Problems 30 SHEET 8 - OETHOGBAPHIC PROJECTIONS PROBLEMS DIRECTIONS I. Study carefully Sheet C. (Pages 27 and 28.) Apply principles there shown to development of followingproblems. II. PROBLEM 1. (a) Lay out…
