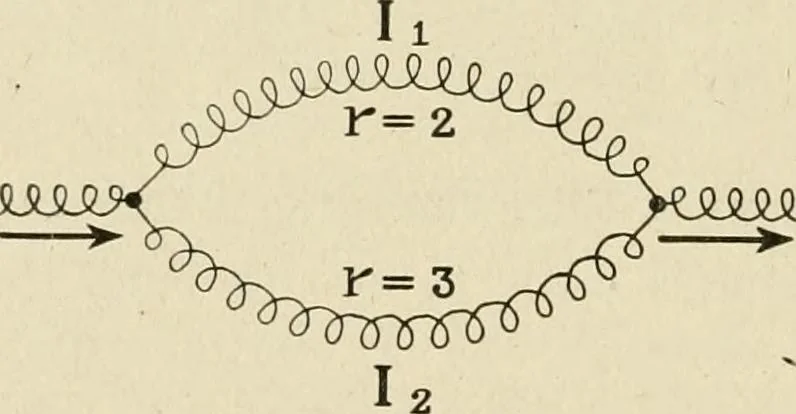

qual resistance, the flow of current through anybranch will be inversely as the resistance of that branch. For example, if a circuit divides into two branches, the rela-tive resistances of which are 2 and 3 respectively, Fig. 262, the currents I^ and /, in thesebranches will be i^roportionalto the… … Fig. 262. The current divides inverselyas the Iesistance. L : L THE DIVIDED CIRCUIT. 509 1.^1.--^ that is. I, :L_ = 3 -.2. Therefore, in the branches in which the relative resistances areas 2 : 3, the currents will be as 3 : 2. In other words, in this ex-ample, 3/5 of the current will flow through…
