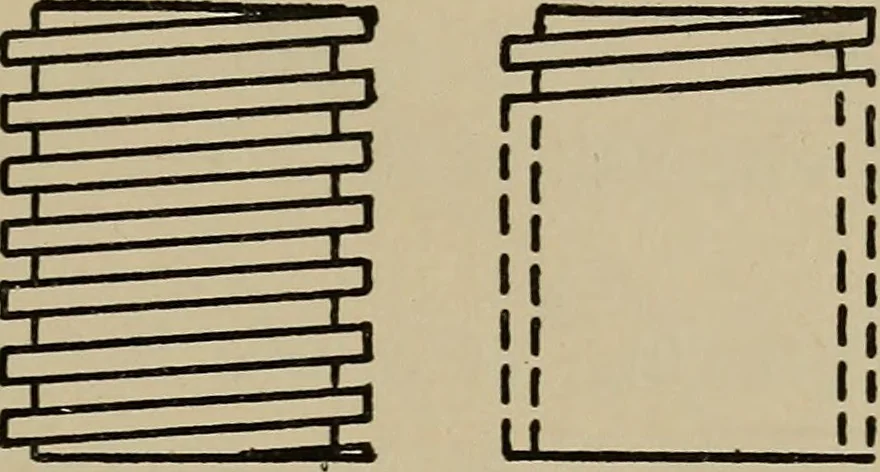

^7^ i! iII I The first change from the accurate thread is to make thecurves straight (as shown in Fig. 32). The next changeto make is, in the case of the V thread, to omit the saw toothedge, leaving just the longer and shorter lines, as .shown,making the limits of the screw a cylinder. Another…
