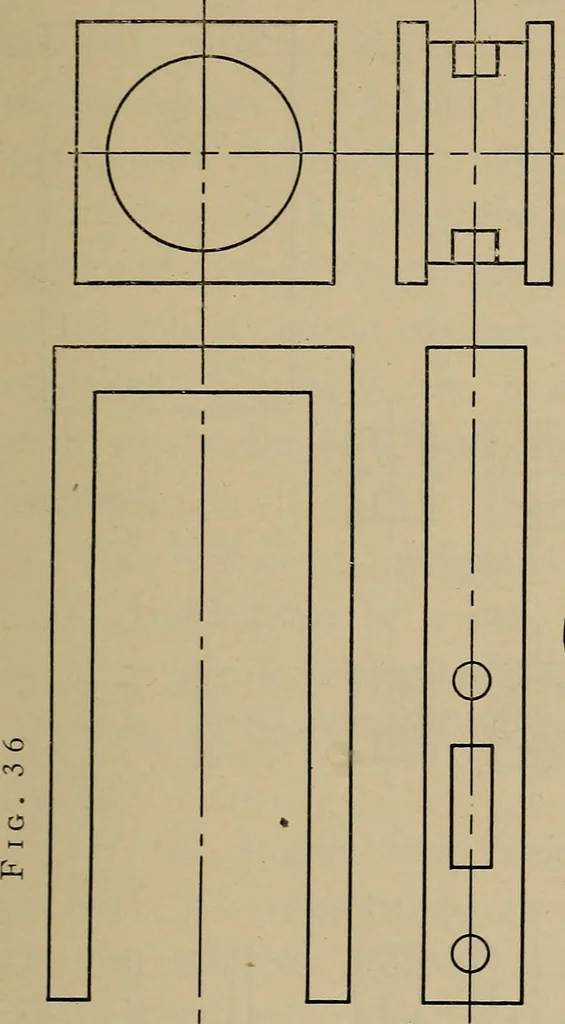

d; the brasses may be shown also to the rightand left of the straps as if they had been removed by simplysliding along their center lines coinciding with that of theirposition in the straps; finally, the keys, and bolts, etc., m.aybe put in the lower part of the sheet in any convenientplace,… … C) —] U LI u J C) LJ [U m ^ 3 ^ } m T 0 [J El [T II _7 Working Drawings 135 Another logical and perhaps better arrangement isshown in diagram, in Fig. 37. Here the principle is followedof placing parts of a kind together, disregarding their exactposition in the subject. The straps of both ends are…
