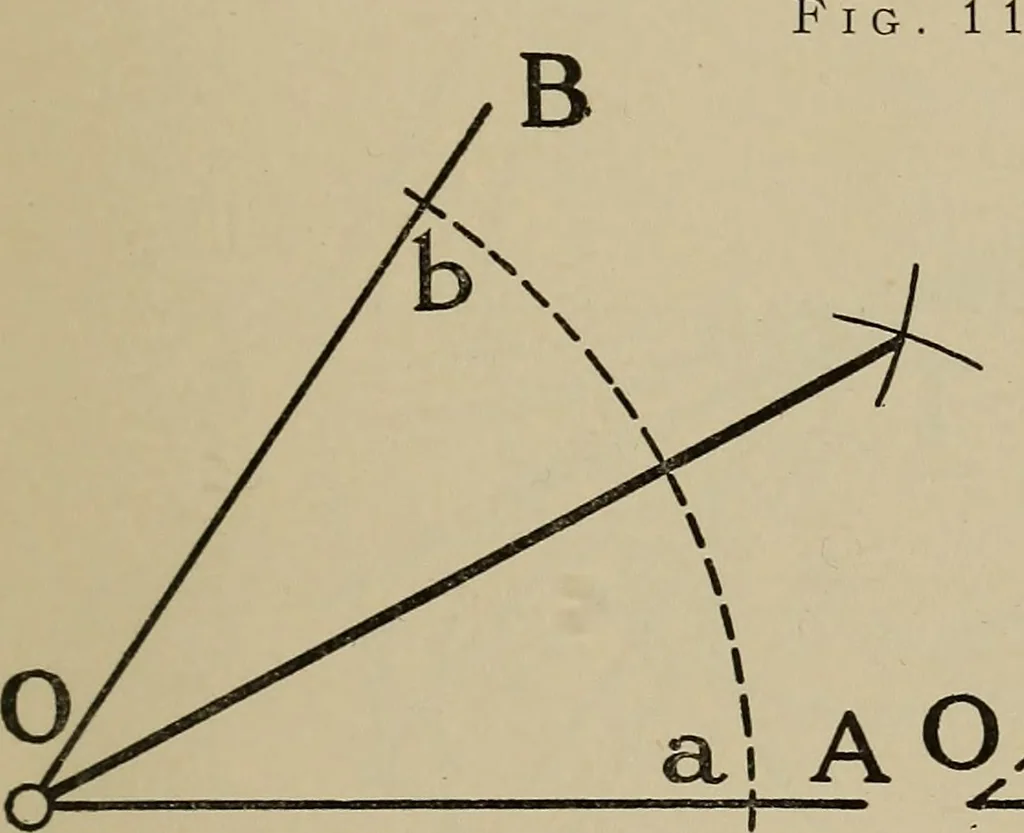

le with OA. With the scale, or dividers, Irregular Curves and Geometrical Drawing 83 lay off any convenient unit from O on OB, as many timesas parts into which it is desired to divide OA. Connect thelast division with A, as 7A. Then draw lines through theother divisions parallel to 7A; they will… … 6 7y A 5 A ^ A very ready application. To illustrate: If the distancebetween two parallel lines is to be divided into equal parts,in order that a number of parallels may be drawn to the firstpair of lines, and they lie either horizontal or vertical, takethe scale with any convenient unit, swing it…
