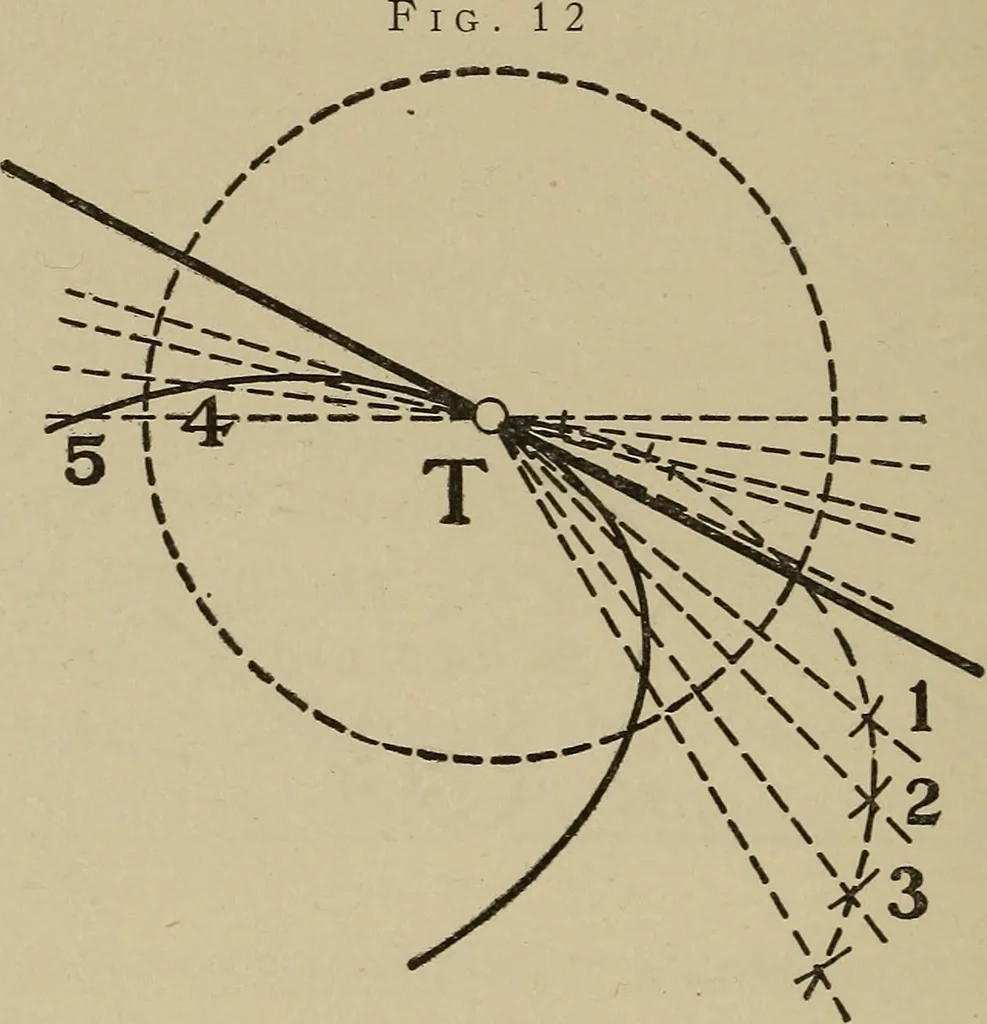

out, see Fig. 12: Through T, the point of the desiredtangent, draw random secants through points on the curveas 1, 2, 3, 4, 5, etc. With T as a center, and any radius, 84 Notes on Practical Mechanical Drawing describe an arc to cut the secants prolonged. On eachsecant lay off, from its intersection… … these points. Where this curve cuts the auxiliary circle, isa point in the tangent. For the tangent the chord lengthwill be its minimum value. To inscribe a circle in any triangle: Bisect any two ofthe interior angles. The intersection of these bisecters willbe the center, and its perpendicular…
