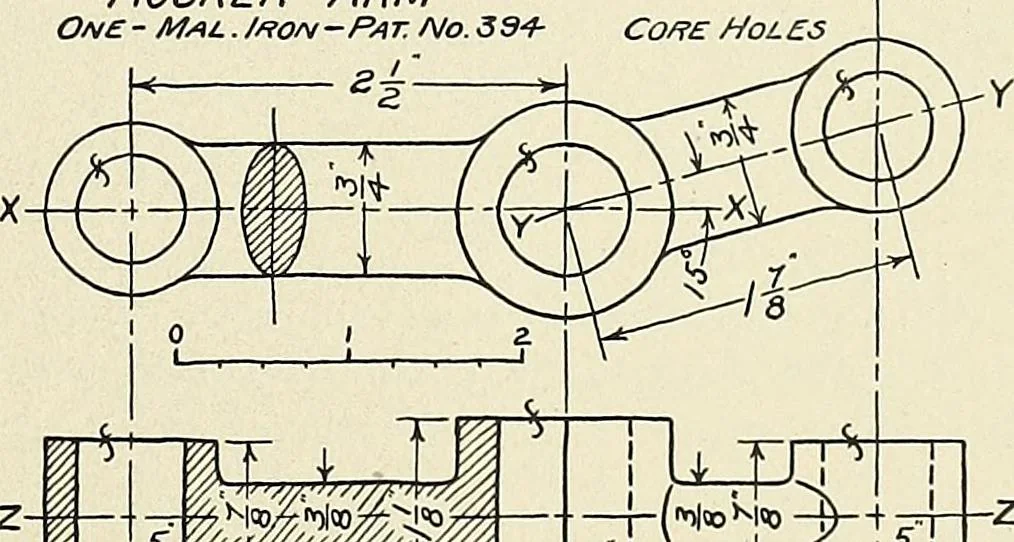

, spotand draw the lines of the arms, basing their thickness on theirwidth. Draw the vertical side lines of the , holes and hubs.The arms being filleted into the hubs, there will be no intersection line, but the shape of the joint may besuggested by a line, as shown in the drawing. By showing… … ■0^S^2^^ r-A w \ -/i-^ fT Fig. 23. 53 Next draw extension and dimension lines, but put on no figures. Make the measurements systematically,so none may be overlooked. The following order is satisfactory. Distance between centers of hubs; Angleof arms; Diameter and length of each hub and hole; AVidth…
