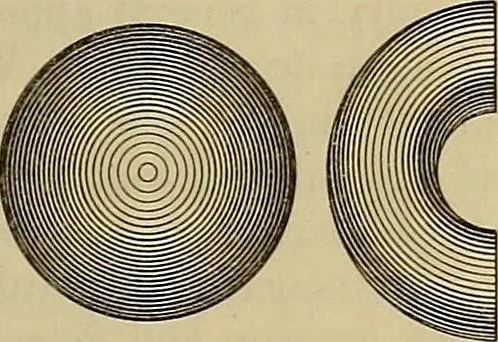

Fig. 52. … Fig. 54. 282. In Fig. 54 is shown a simple method of shading a spherical surface. It does not give a correctefTect, but the exact effect is obtained only by methods of lining which require much skill and time. 283. A half torus or return bend is shown in Fig. 54, the effect being produced by…
