Notes on technical sketching and free hand lettering for engineering students (1912)
Smith, Alton Lincoln, 1867- [from old catalog] · Worcester, Mass., The author · leaf 106

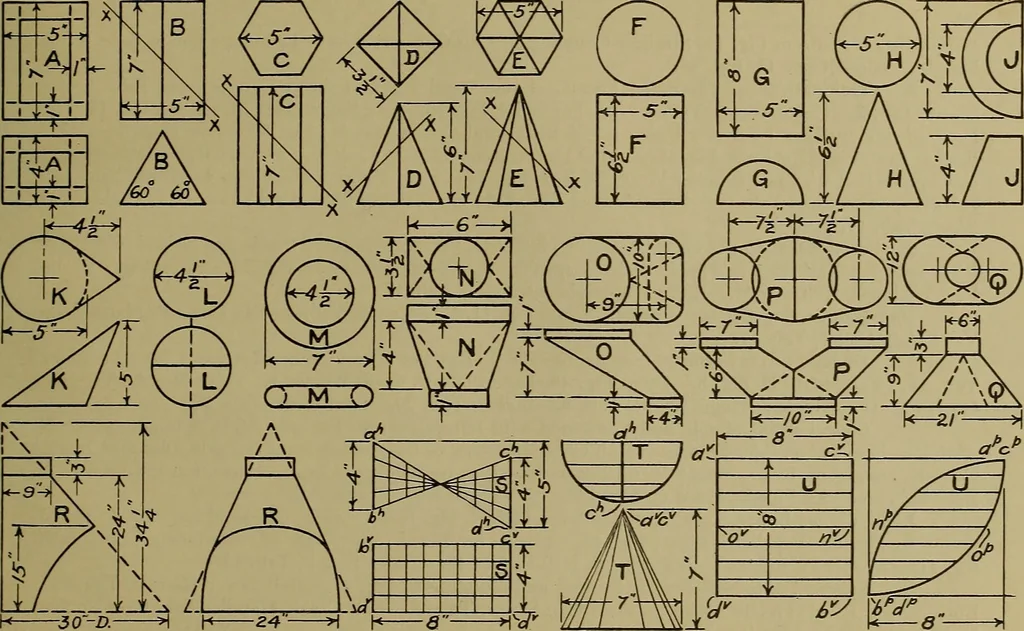

. 47, resting on base, withand without part above x—x removed. 6. Cylindrical Forms.—Cylinder F, Fig. 47, lying on side and on end.—Flat and Oval Fillisterhead Cap Screws, Tab. 3.—Cyhnder Cap, Fig. 9.—Knurled head Screw, Fig. 10.—Cotter Pin, Fig. 22.—Stud, Tab. 4.—Core from Core Box C, Fig. 33. 7.… … Fig. 47 104 Blank, Fig. 18.—From Fig. 11, Straight Coupling A, Cap C, Short Nipple L, Flange Union S.—Cam E,Fig. 48.—Speed Cone Q, Fig. 48. 8. Combinations of Preceding Forms.—Square and Hexagon head Cap Screws, Tab. 2.—SetScrew, Tab. 2.—Collar Screw, Tab. 4.—Anchor Bolts, Fig. 10.—Lag Screw, Fig.…
