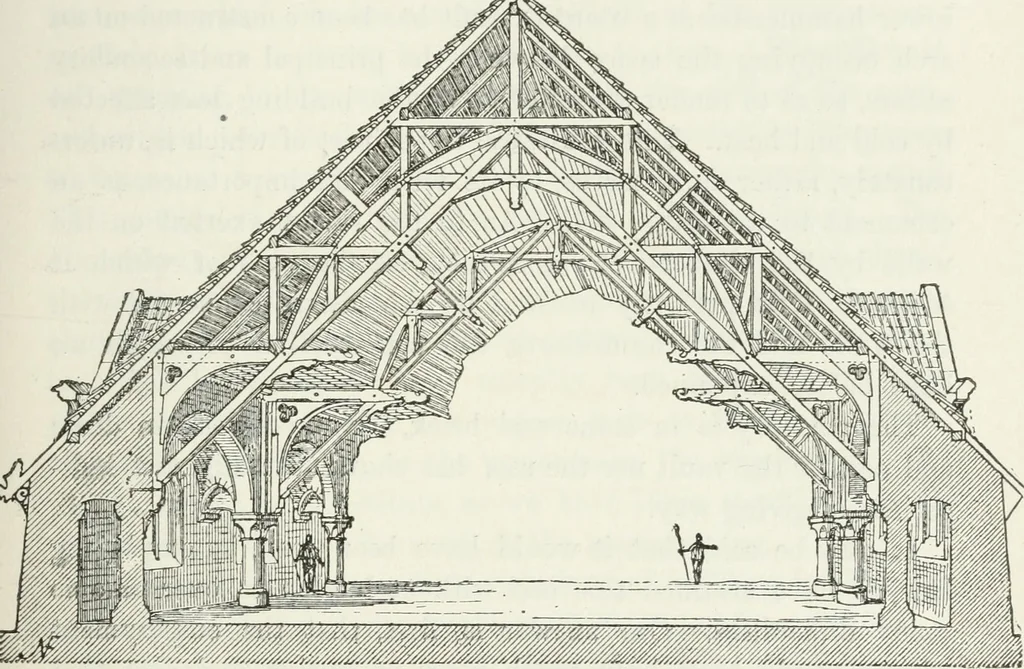

al vault turned over them, while a lower arch HANOVER. 193 connects the isolated pillar with the outside wall, which is onlyabout 1 foot 8 inches in thickness, hut is supported by but-tresses. The construction, up to this point, is precisely similarto that adopted in certain French churches of the… … Fig. 103. — Section and View of Roof of Gymnasium. French building, an uncovered timber roof, of a special construc-tion, has been erected over the German edifice. The top of the pillars is about 9 feet 10 inches above theground, as we have already said, while the height of the ridge-piece is 54…
