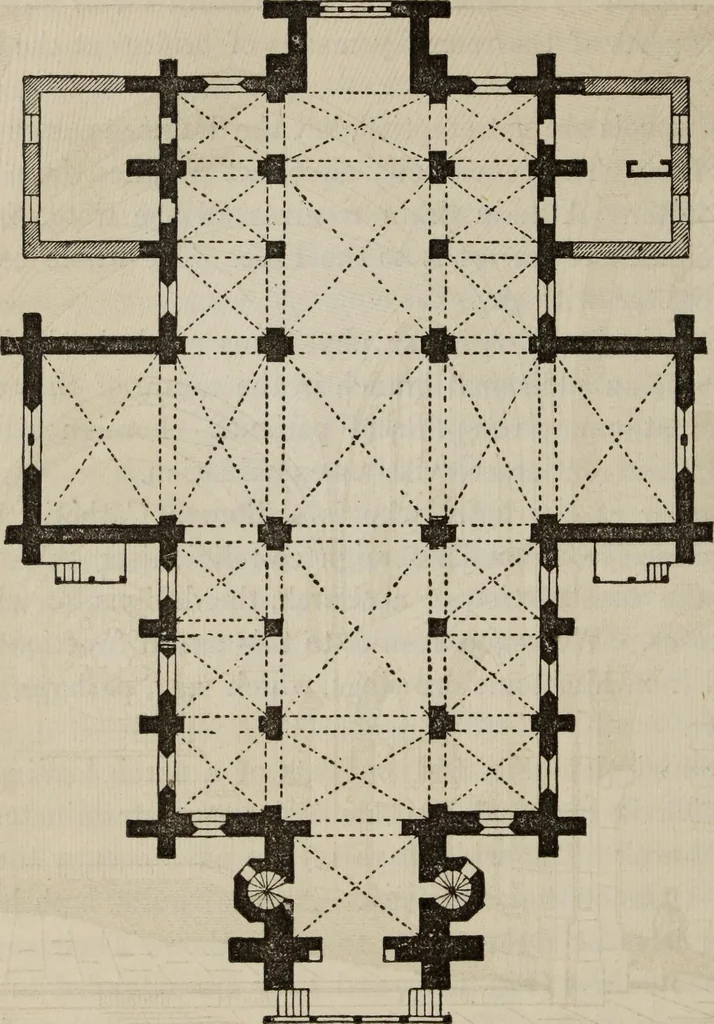

g of the arch. Small columns, giving additional strengthto those of the transept, and placed against each side, supportthe wall arches. Large isolated windows give light to the nar-row bays. In the wider bays of the transept, instead of a singlewindow, a triple one has been made. These windows… … Fig. 146. — Ground-plan of Koman Catholic Church at Hamburg. the roofs of the side aisles. Arches placed below these roofs,the timber-work of which is supported by them, sustain thethrust of the vaults of the nave. HAMBURG. 277 The steeple is over the main entrance, and forms the greatfeature of…
