Merchant, F. W. (Francis Walter), 1855-1937, Chant, Clarence Augustus, 1865-1956 · Toronto : Copp Clark · leaf 436

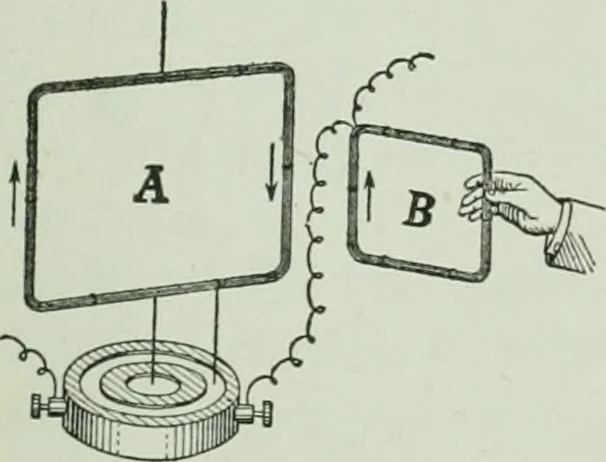

shown in Fig. 512 so that a current from a battery of three or four cells will pass in one continuous current through the two coils. Bring one edge of B near one ofthe vertical edges of A with theplanes of the coils at right angles toeach other, in such a position thatthe current in the adjacent… … Fio. 513.—Connection for demonstratingAnipferes Laws. Parallel currents inopposite directions repel each other. 426 MAGNETIC RELATIONS OF THE CURRENT
Physics
Internet Archive · Western University Libraries · Public Domain Mark 1.0. Free to use for anything.
