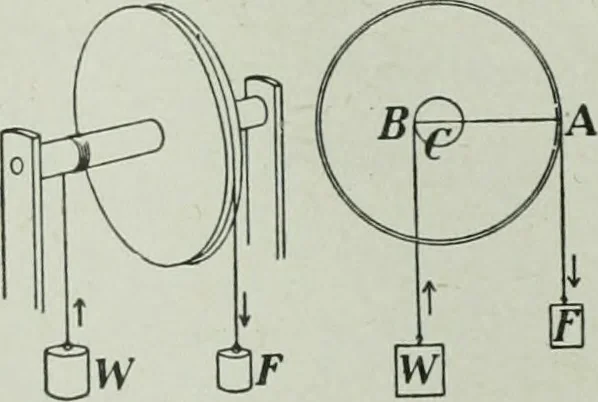

stands (Fig. 86). Find hispressure on the floor. 88. The Wheel and Axle. This machine is shown in Figs. 87, 88. It is evident that in onecomplete rotation the weight F willdescend a distance equal to tlie cir-cumference of the wheel, while theweight W will rise a distance equalto the circumference… … Fig. 87.—The wheeland axle. Fig. 88.—Diagramto explain thewheel and axle. 1 ^ and — =F , the mechanical advantage. This result can also be seen from Fig. 88. The wheel andaxle turn about the centre C. Now W acts at B, a distance rfrom C, and F acts at -<4, a distance R from G. Then, from the…
