Patentees and makers of machinery : on the latest and most approved principles for preparing, spinning & doubling, cotton, cotton waste, wool, worsted, silk, and bigonia yarns (1900)

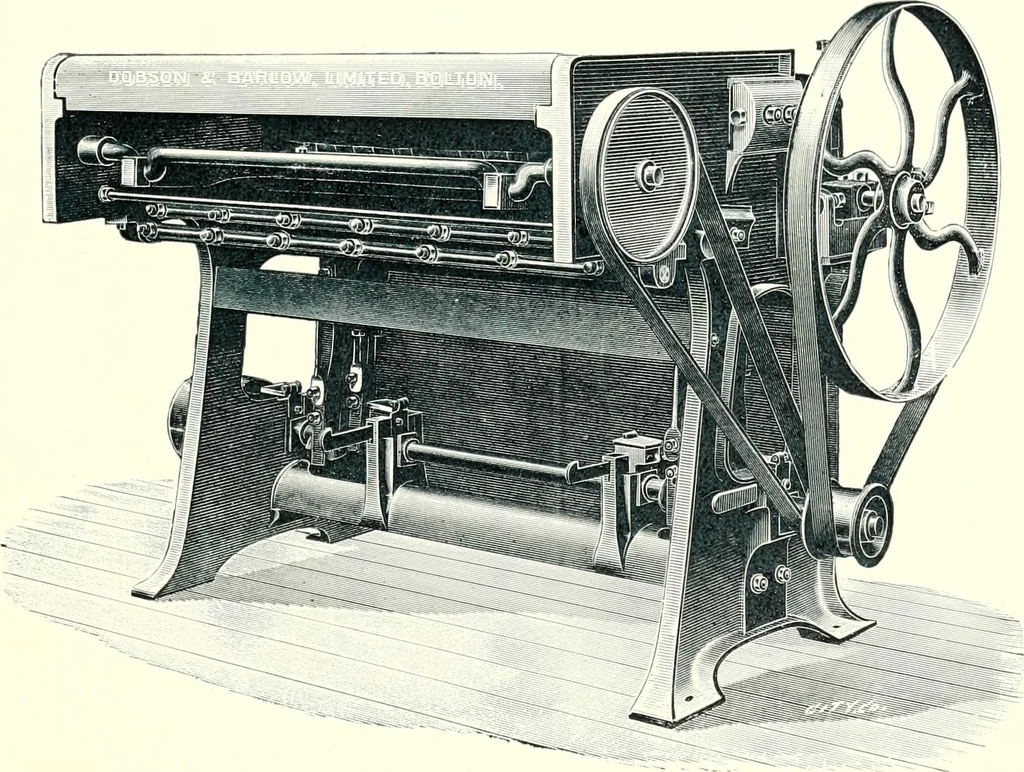

Grid. Crank for Feeder Bar.Adjusting Screw for Leather Roller. jj ij II II a m DOBSON S:. BARLOW LIMITED, BOLTON. DOBSON & BARLOW LIMITED, BOLTON. ^ 3.—Set the bevelled edge of the doctor kuife against tlie leather roller, so that theedge of the knife may be in a line with the centre of leather… … DOUBLE ACTION MACAETHY COTTON GIN. 5.—When ginning short stapled cotton the beater knife F in Single Action Gin,and the knife K in Double Action Gin, should overlap the doctor knifeI of an inch, but for long stapled cotton i or -^ of an inch is the usualoverlap. 6.—The feeder bar can be adjusted as…
Textile machinery
