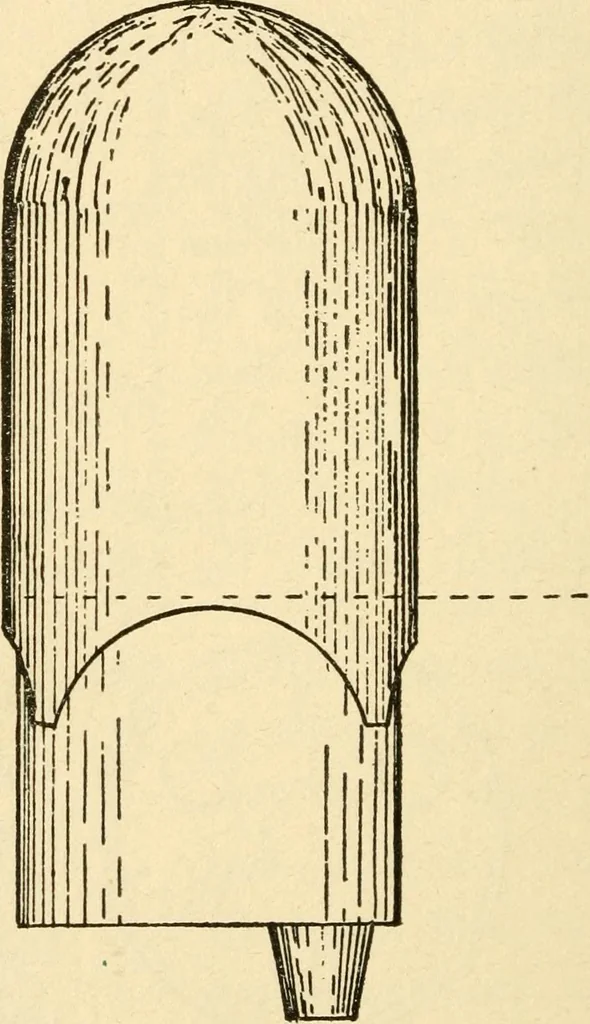

7>y rs- Cro9s 3cetzoit of Arae 120 PATTERN MAKING possible to make. Next make the pattern forthe bell, Fig. 76, and the base, Fig. 77.Now make the core box as shown at a-b inFig. 78, two slides, c-c. Fig. 78, being made for Thr-ft rry … the openings at the upper end. One slidereaches almost across the opening and joins withthe partition slide d^ Fig. 79. The other cutsoff even with the inside of the core box and isonly designed for closing up the slot when not AND FOUNDRY PRACTICE 121 needed. Next make the partition slides d.…
