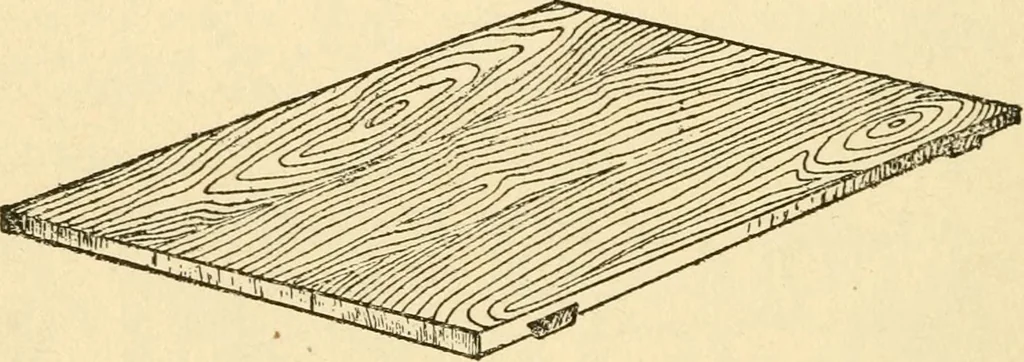

for most patterns may bemade with a lead pencil, a pair of dividers with 40 PATTERN MAKING a pencil point, a pair of beam compasses ortrammel points and a steel square. Many oldpattern makers use no other tools and maketheir drawings on the surface of a smooth plank,which only needs planing off to… … ris tt it will be found very convenient to have a fewregular drawing instruments. The drawingboard should be of any convenient size andmade of well-seasoned, clear, soft pine, perfectlystraight and square, with hardwood cleatsdriven snugly into dovetail gains or groovesacross the back of the board,…
