Pattern making and foundry practice; a plain statement of the methods of wood pattern making, as practiced in modern pattern shops, with complete instructions for sweep work and notes on foundry practice, together with numerous drawings taken from actual patterns .. (1905)

Hand, L. H. (Louis Henry), b. 1854 · Chicago, F. J. Drake & co. · leaf 57

An illustration from Pattern making and foundry practice; a plain statement of the methods of wood pattern making, as practiced in modern pattern shops, with complete instructions for sweep work and notes on foundry practice, together with numerous drawings taken from actual patterns .., 1905, leaf 57

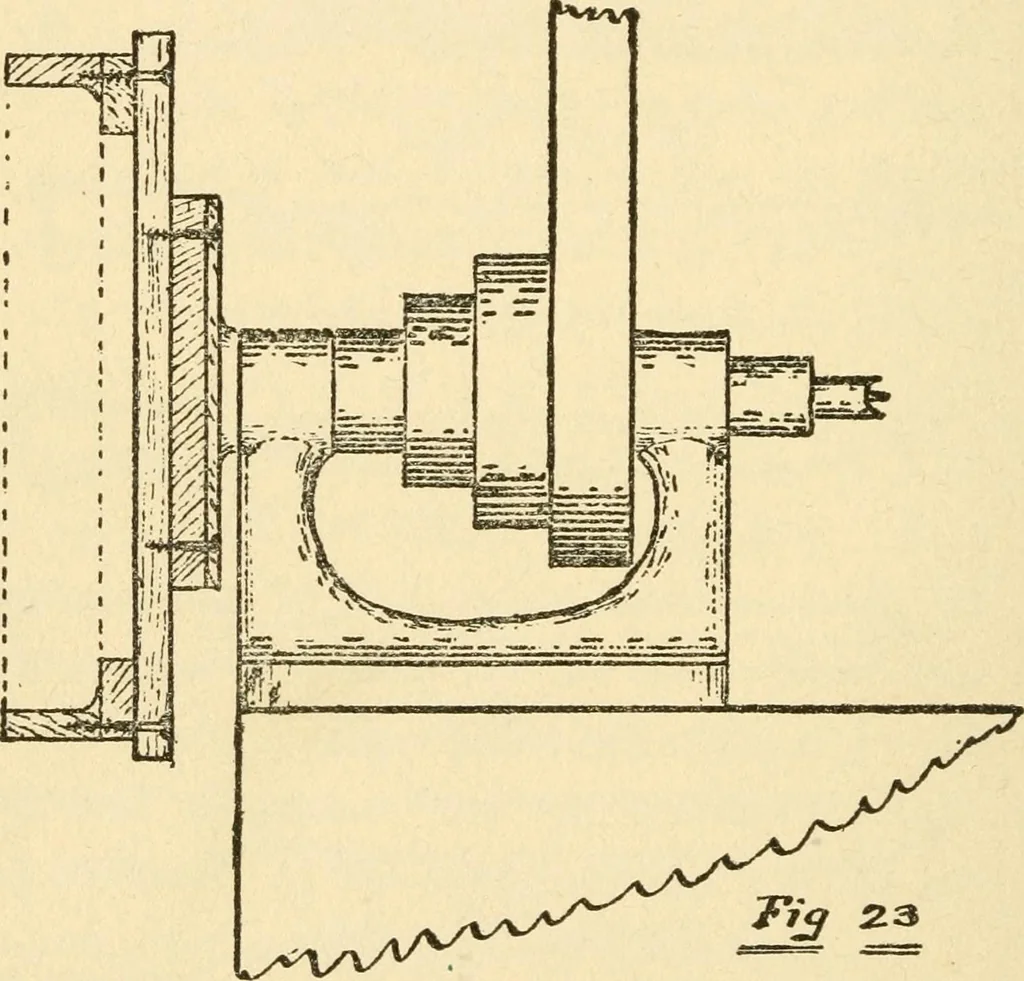

itili itoseci cAist? The parting tool, Fig. 20, is used for cuttingdeep grooves and for cutting off work in thelathe. The diamond point. Fig. 21, and the 52 PATTERN MAKING bull-nosed chisel. Fig. 22, are used for turningboth the outside and inside surfaces of hollowpatterns, such as the piece shown… … Ti^ 23 ware stores generally. The rest can be had fromlarge supply houses, or from dealers in toolspecialties, or they can be made by a first-classsmith. In addition to the tools heretofore men-tioned, the pattern maker will sometimes find it AND FOUNDRY PRACTICE 53 convenient to have special tools…
