Pattern making and foundry practice; a plain statement of the methods of wood pattern making, as practiced in modern pattern shops, with complete instructions for sweep work and notes on foundry practice, together with numerous drawings taken from actual patterns .. (1905)

Hand, L. H. (Louis Henry), b. 1854 · Chicago, F. J. Drake & co. · leaf 95

An illustration from Pattern making and foundry practice; a plain statement of the methods of wood pattern making, as practiced in modern pattern shops, with complete instructions for sweep work and notes on foundry practice, together with numerous drawings taken from actual patterns .., 1905, leaf 95

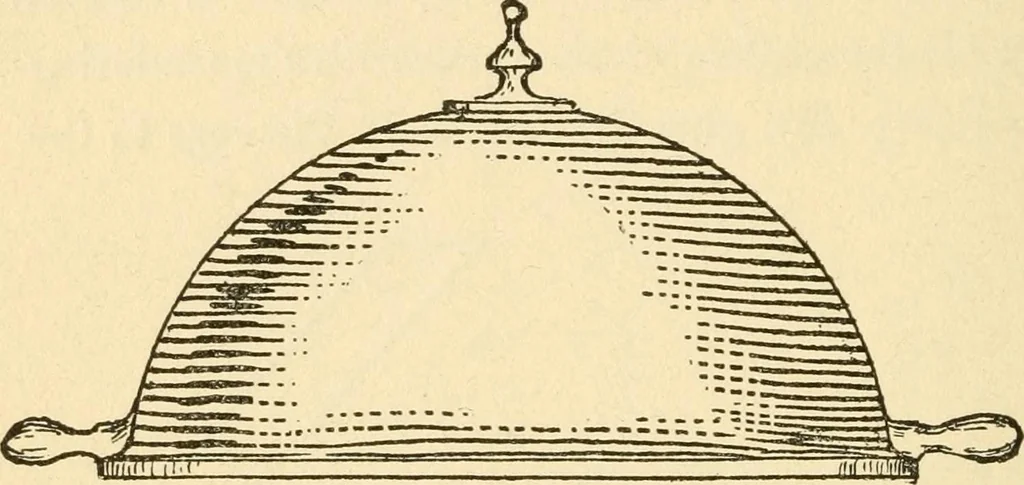

he usualmanner. Fig. 49, showing an iron dome with projectingornament at the top and a handle at each side, ishere introduced as a sample of what may bedone with hollow cores. Assume that a roughform has been glued up as shown in cross-sectionin Fig. 50. Attach this form to the lathe andturn out… … for the handles and finial. Make suitable coreboxes for these prints, which core boxes should
