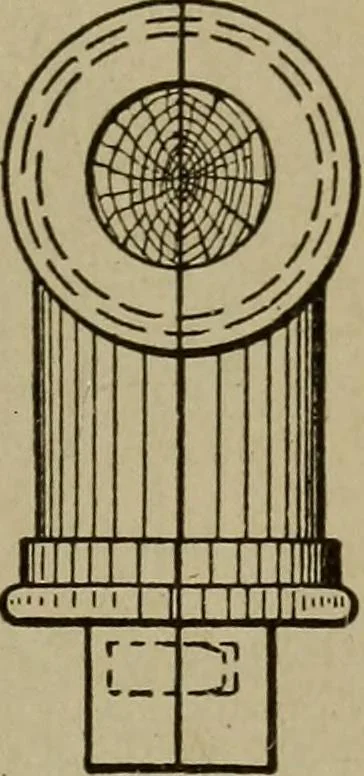

Fig. 210. Section of Double-Elbow Pattern sunk in these metal lathe dogs when parts of the pattern are to beturned on several centers. The metal pinch dog, Fig. 207, is notadapted for lathe work, as it is liable to fly out when the workrevolves, endangering the operator. Jointing. When the turning…
