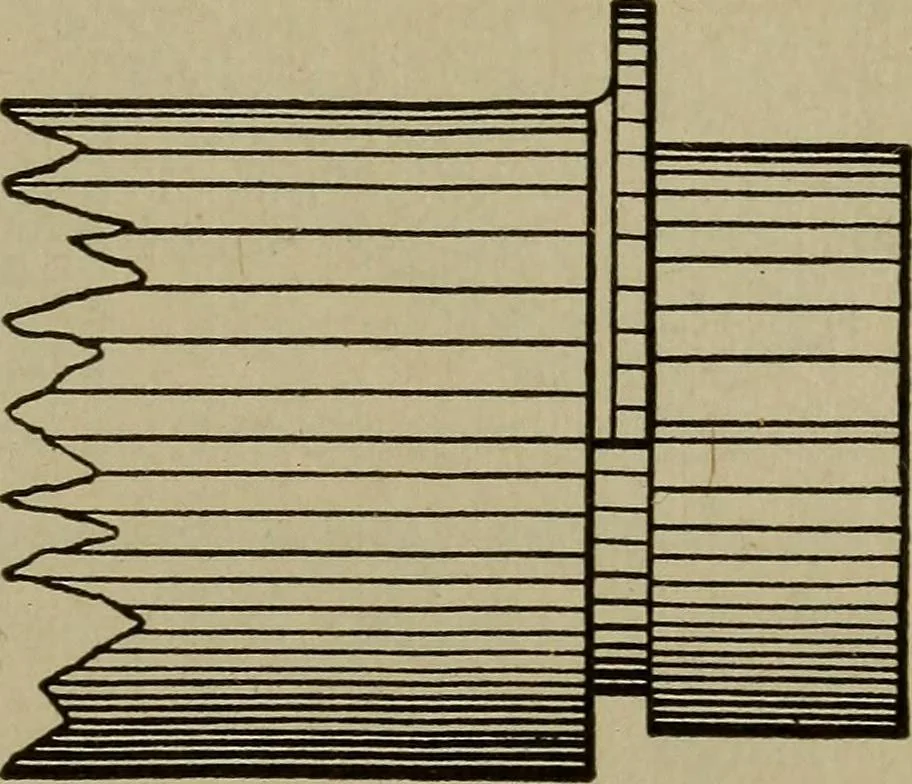

Fig. 221. Construction of Flanges forPipe Pattern Fig. 222. Diagram Showing Reces3 forFlanges in Pipe Pattern as shown in the diagram, Fig. 222; it can easily be seen that whenthe flange is fitted therein, it adds greatly to the strength of the joint.
