Pattern making; a practical treatise for the pattern maker on wood-working and wood turning, tools and equipment, construction of simple and complicated patterns, modern molding machines and molding practice (1916)
Ritchey, James, Monroe, Walter W. (Walter William), b. 1869 · Chicago, American technical society · leaf 143

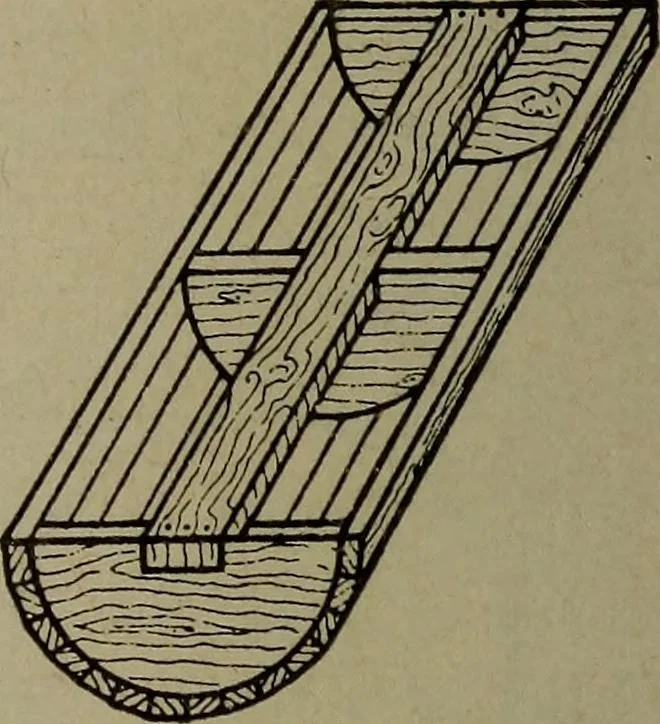

Fig. 224. Method of Assembling Wood for-LargePipe Pattern Fig. 225. Light Pattern Con-struction for Cylinder Large Cylindrical Work. The patterns for the larger pipes orcolumns are to be glued up, as shown in Fig. 224, and, for turning,the two halves are held together by means of lathe dogs such…
Patternmaking
