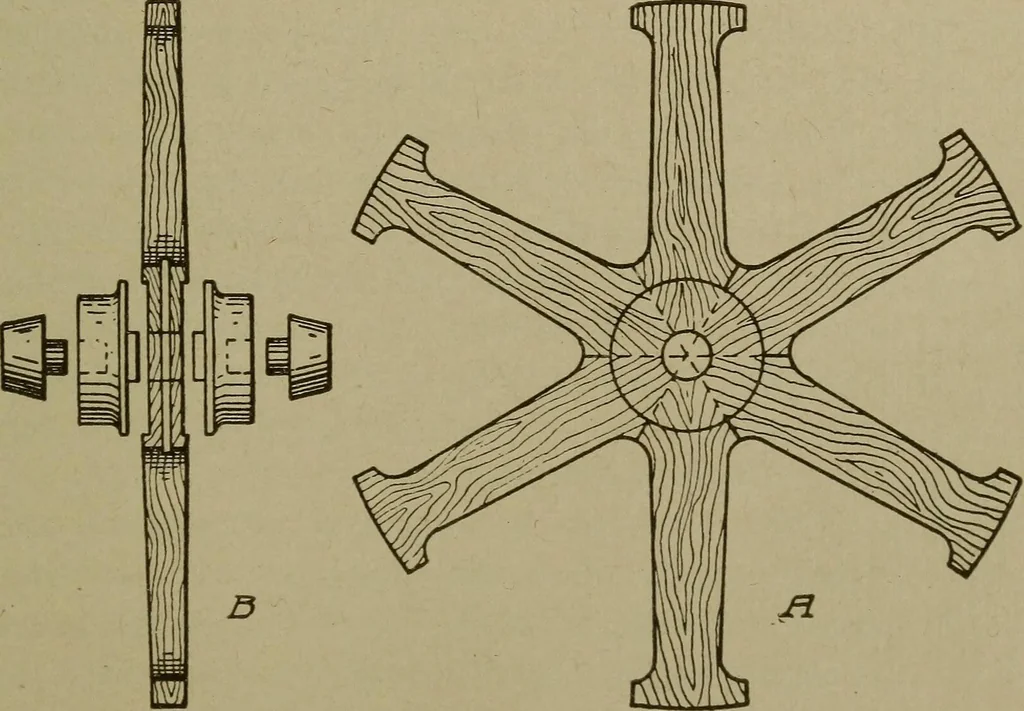

Wholedepth line ^Pitch line Fig. 254. Wood Spur Gear with Teeth Fastened withWood Screws, Filler Pieces Glued between Teeth … Fig. 255. Arms, Hub, and Core Prints of Spur-Gear Pattern found to be in no way inferior to dovetailing, and the saving of laborand time is very great. In this method we have always the advan- 142 PATTERN MAKING
