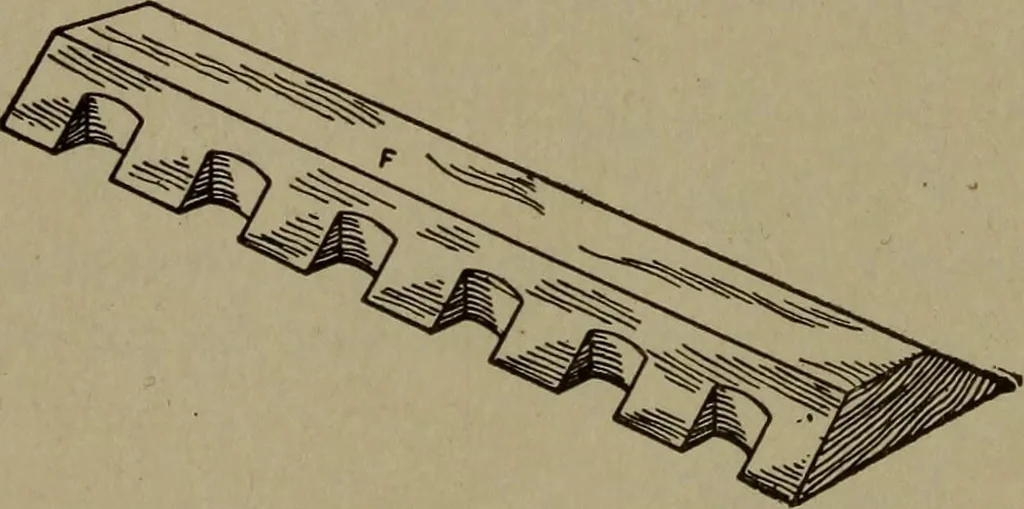

holes which are cored in the stripping plate. The dimension Q shall be theheight of the core printplus | inch, and R shallbe the total thickness ofthe pattern including thecore print. Drag Pattern. Fig.338 shows a perspectivesketch of the master pat-tern for the nowel or drag machine. This pattern… … Fig. 339. Pattern for Part F, Fig. 329
