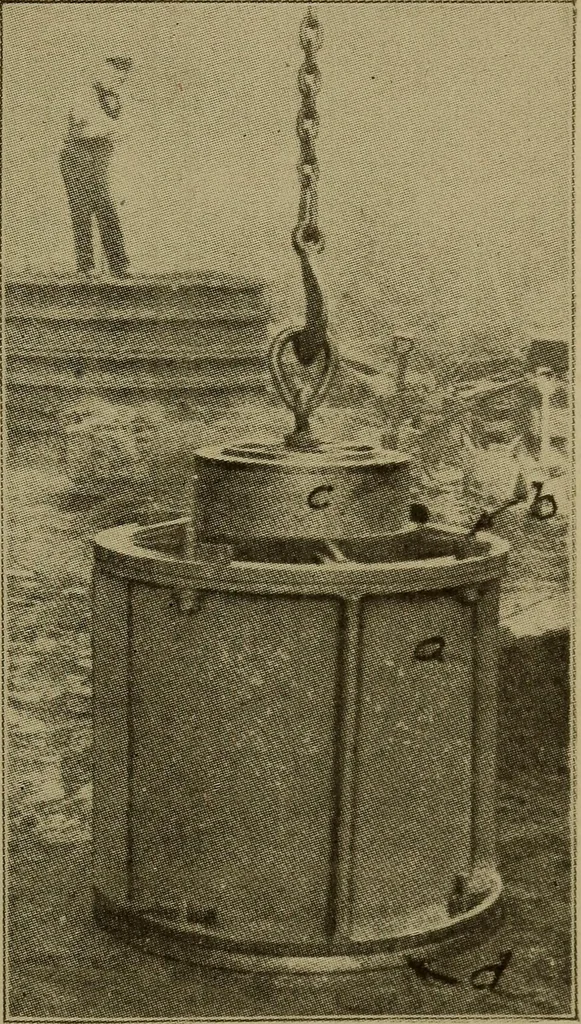

makingthis roll, but without thesteel shaft. Mold Plate. The mold-plate pattern is shown in Fig. 378.This illustration is upside down, and as only one casting is required,too much expense should not be put into its construction. Theupper surface of the casting is to be finished and the recess for… … Fig. 376. Pattern Being Drawn throughStripping Ring 218 PATTERN MAKING Lifting Eye -© Roll^ Pattern
