Pattern making; a practical treatise for the pattern maker on wood-working and wood turning, tools and equipment, construction of simple and complicated patterns, modern molding machines and molding practice (1916)
Ritchey, James, Monroe, Walter W. (Walter William), b. 1869 · Chicago, American technical society · leaf 37

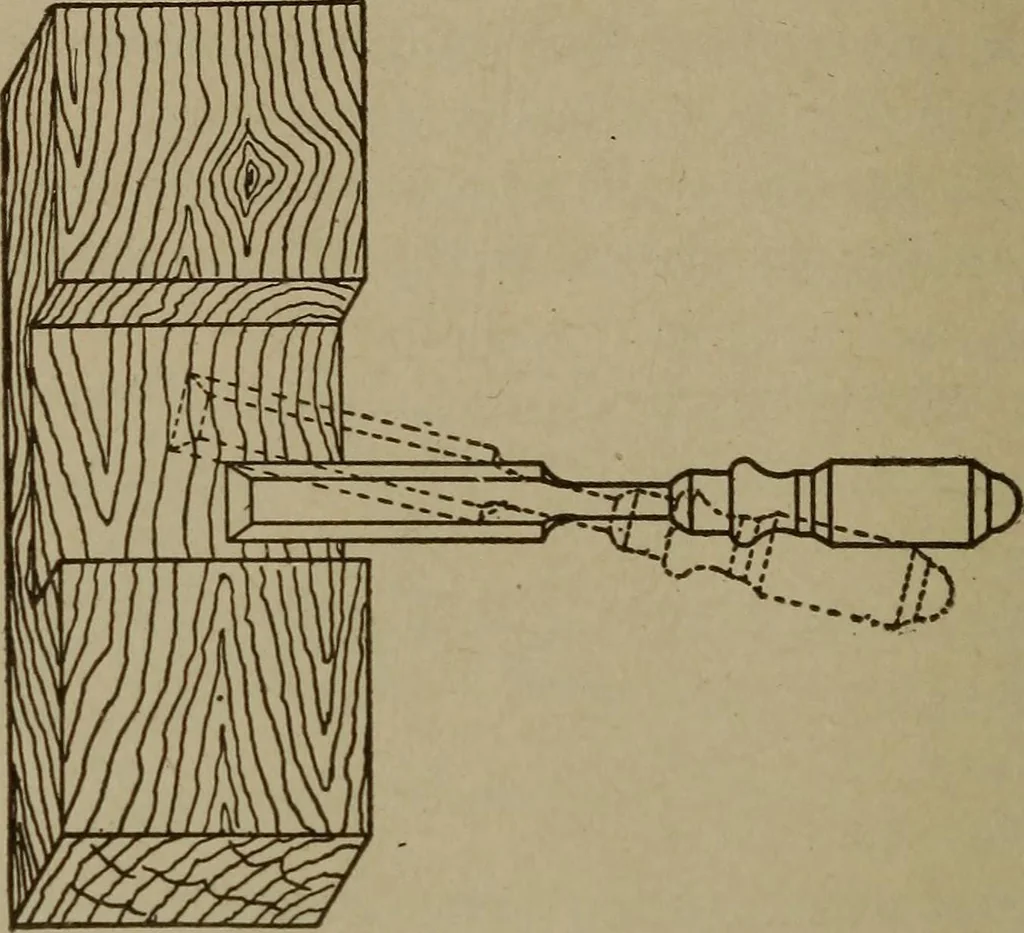

ool. A set varying in widthfrom | inch to f inch by eighths,, and from f inch to \\ inches byquarters, nine chisels in all, will be found useful. Examples of Use. The manner in which the chisel is used isso obvious and simple that any instruction in that direction wouldseem unnecessary. We shall… … Fig. 43. Method of Using Chisel it should not be pushed straight forward or straight through anopening, especially when paring across the grain of the wood, butshould be moved laterally at the same time that it is pushed forward,as indicated by the dotted lines in Fig. 43, ^g^p^^s^^This insures a…
Patternmaking
