Pattern making; a practical treatise for the pattern maker on wood-working and wood turning, tools and equipment, construction of simple and complicated patterns, modern molding machines and molding practice (1916)

Ritchey, James, Monroe, Walter W. (Walter William), b. 1869 · Chicago, American technical society · leaf 44

An illustration from Pattern making; a practical treatise for the pattern maker on wood-working and wood turning, tools and equipment, construction of simple and complicated patterns, modern molding machines and molding practice, 1916, leaf 44

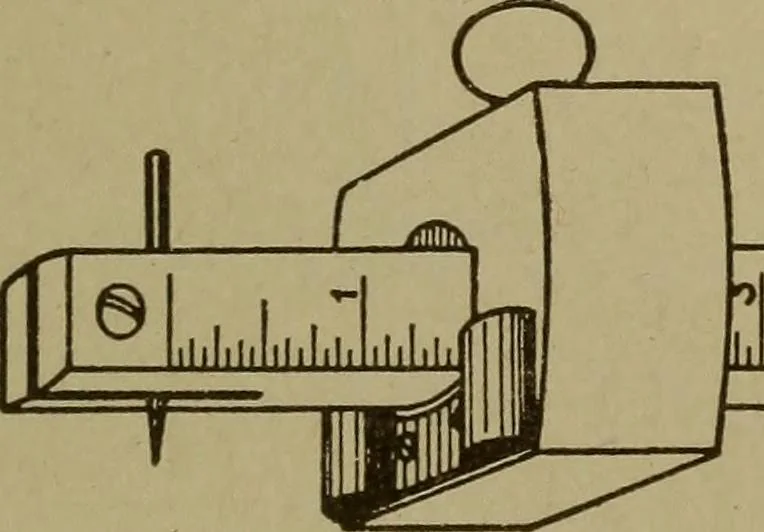

61. Shrinkage Rule brass 24| inches long, and for other soft metals 24^ inches in length.They can also be bought made of tempered steel 12J inches, 12^inches, and 12 J inches in length. In making use of the shrinkagerule, the workman will proceed just as though he were using astandard rule; and… … llillllllllllllllllllllllllllllllllllllllllll Fig. 62. Improved Marking Gage . Marking Tools. Marking Gage. The marking gage is used fordrawing a line at a given distance from, and parallel to, the alreadytrued and jointed surface or edge of a board or piece of wood that isbeing marked to…
