Pattern making; a practical treatise for the pattern maker on wood-working and wood turning, tools and equipment, construction of simple and complicated patterns, modern molding machines and molding practice (1916)
Ritchey, James, Monroe, Walter W. (Walter William), b. 1869 · Chicago, American technical society · leaf 57

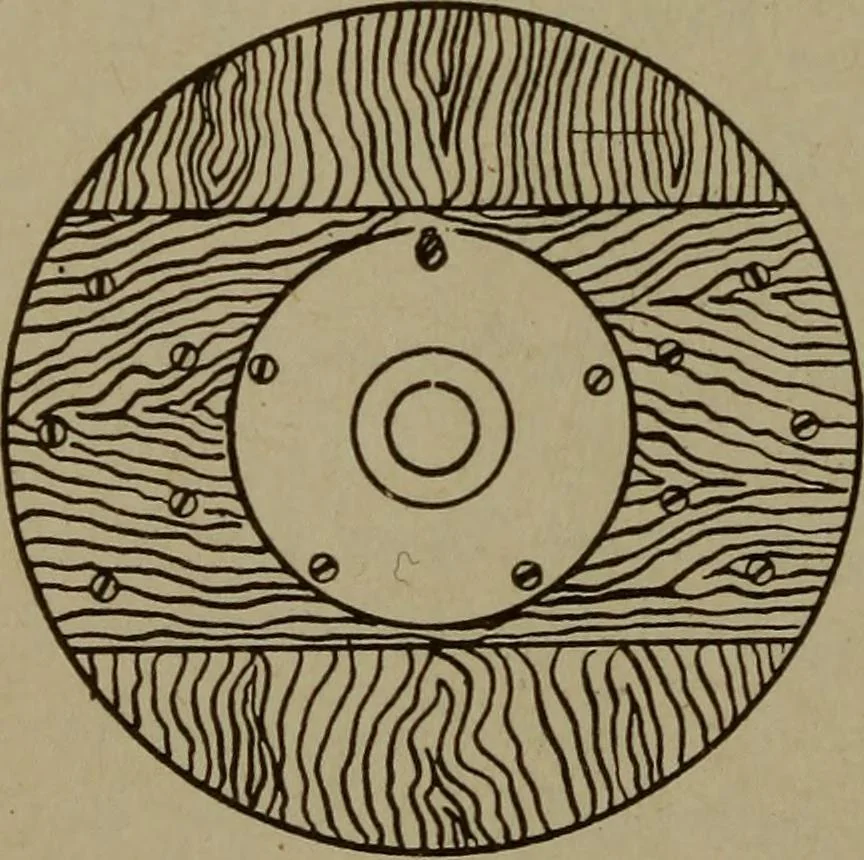

ted in Fig. 91; butfor the pattern makers usefour gouges, ranging fromi inch to If inches, willbe found sufficient for allpurposes. Before using the gouge,and indeed any lathe cut-ting tool, the workmanshould take care to see thatthe tool rest has been elevated above the center line of the lathe… … 1 Fig. 89. Medium-Sized Faceplate Construction PATTERN MAKING 43 the rest so as to use only the extreme point of the tool, but should betilted over, first to one side and then to the other, so as to bring all
Patternmaking
