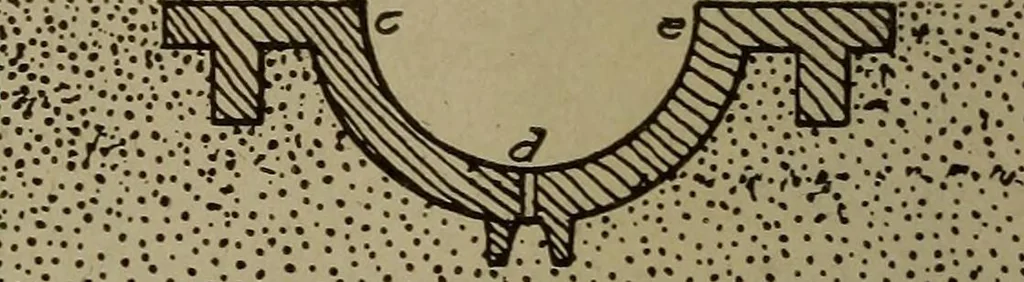

Fig. 117 Cross-Section of CapPattern Fig. 118. Cap Rammed in Drag up as usual. When the drag is turned over, the position of- thepattern in the sand is as shown in cross-section in Fig. 118. Thesand that may have entered the curve cde is lifted out, and thenecessary draft is given to the sand at…
