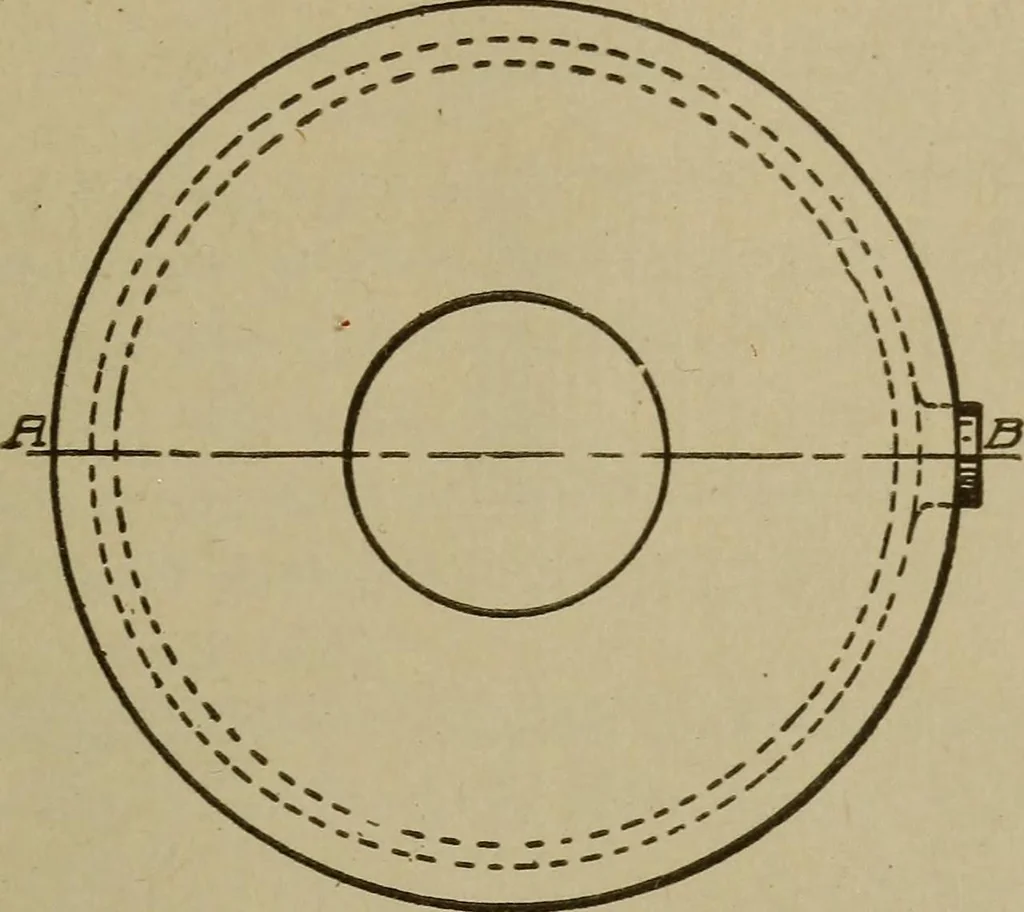

Fig. 124. Dovetailed Slide Fig. 125. Loose-Piece Pattern 7?3i Aim ;Si \_ Ttir if Fig. 126. Loose Pieces in Mold Many other examples might be given, as the case of the commontwo-flange pulley, which, when small, is often molded in this way. PATTERN MAKING 59 Loose-Piece Patterns. It is frequently… … im efl xzn Fig. 127. Turbine Case overhanging parts aTe fastened loosely to the main part of the pat-tern by wires or wooden pins. An example of such a casting is shownin the slide, Fig. 124. A cross-section of the pattern for this slideis shown in Fig. 125, in which the two overhanging parts are…
