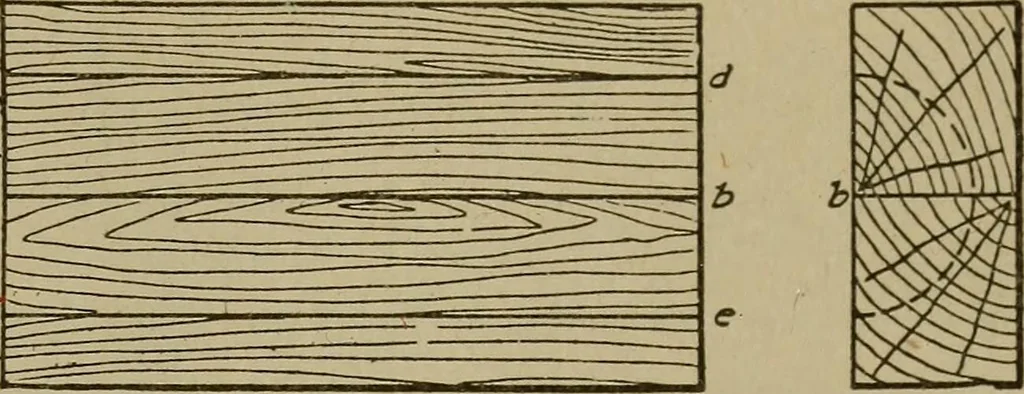

Fig. 140. Core Box for BronzeBushing of Fig. 13S PATTERN MAKING 71 … Fig. 141. Core-Box Stock with Construction Lines small groove scratched along the center of the flat side of each half,to form a vent for the gases generated during the pouring. A smallV-notch, as seen in Fig. 148, should be cut at the center of eachend of the half-core boxto assist in making…
