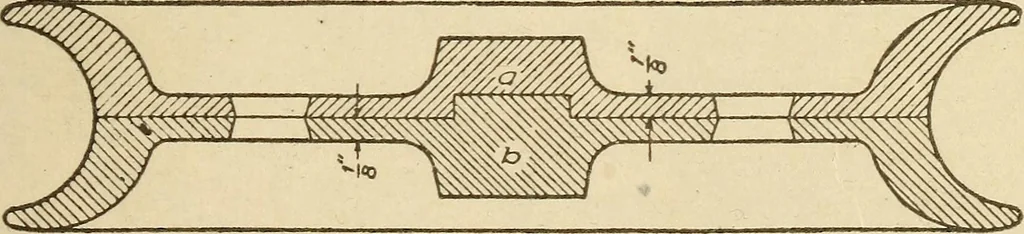

Fig. 159. Small Sheave Pulley … Fig IGO Section of Tattern for Sheave of cast aluminum, the shrink allowance should be based on. ashrinkage of | inch per foot. The wood pattern is called the masierpattern. A cross-section through the finished pattern for this casting isshown in Fig. 160. The groove is a semicircle 1 inch wide,…
