Pattern making; a practical treatise for the pattern maker on wood-working and wood turning, tools and equipment, construction of simple and complicated patterns, modern molding machines and molding practice (1921)
Ritchey, James, Monroe, Walter W. (Walter William), b. 1869 · Chicago, American technical society · leaf 153

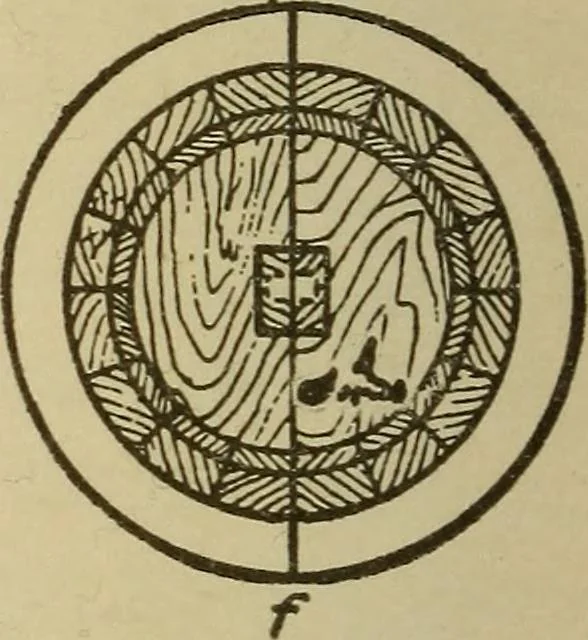

Fig. 246. Section of Cylinder Pattern Fig. 226. The flanges, however, should be built up of segments of two or three layers each, as shown in Fig. 247. , After gluing up to the necessary thickness to make theflange, it is sawed in two halves,jointed, and carefully centered on awooden chuck, and…
Patternmaking
