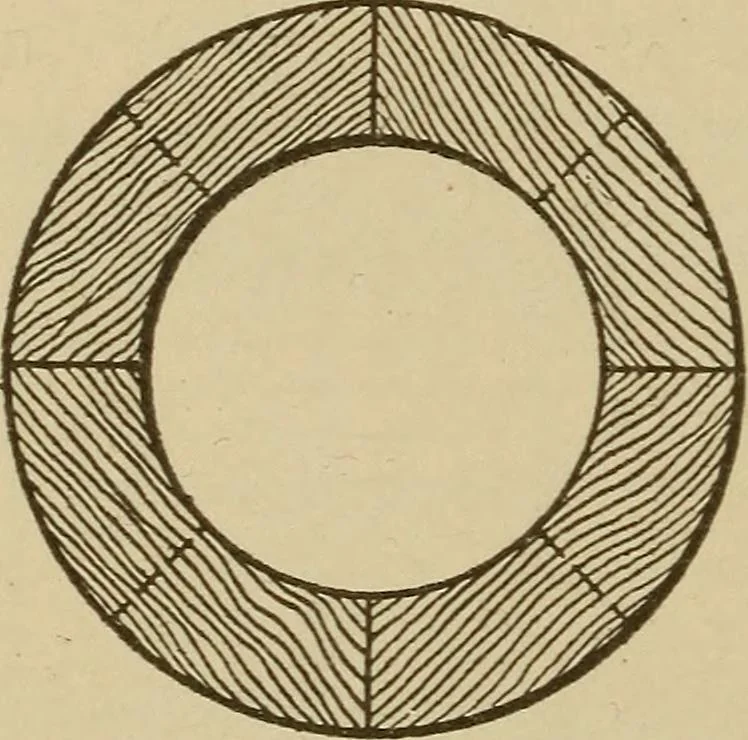

ch, as shown in Fig. 247. , After gluing up to the necessary thickness to make theflange, it is sawed in two halves,jointed, and carefully centered on awooden chuck, and turned to thedimensions required. The centeringmust be done with accuracy, or one-half of the flange ring will be largerthan the… … Fig. 247. Built-up Flange for CylinderPattern
